Khoom Description

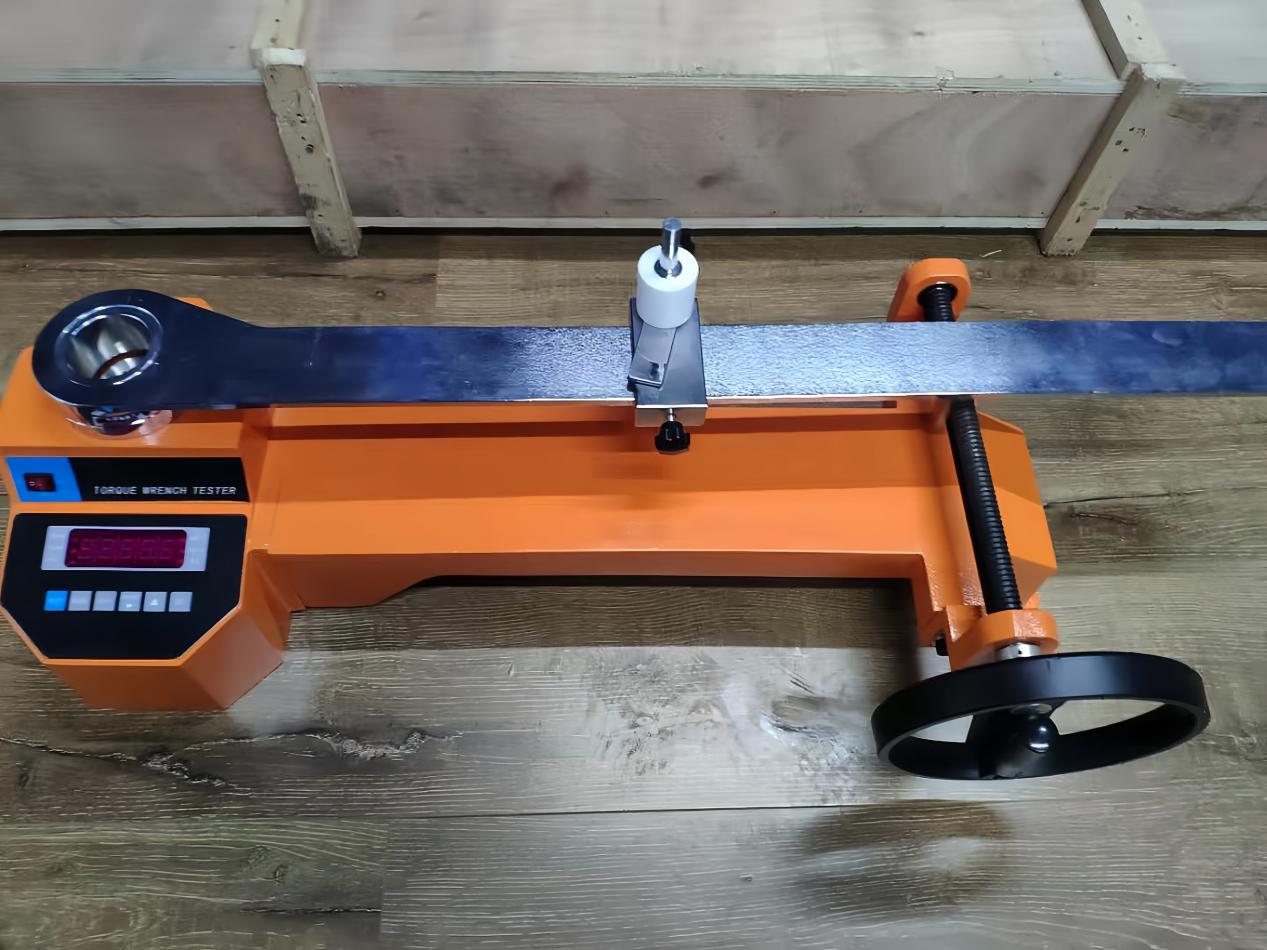

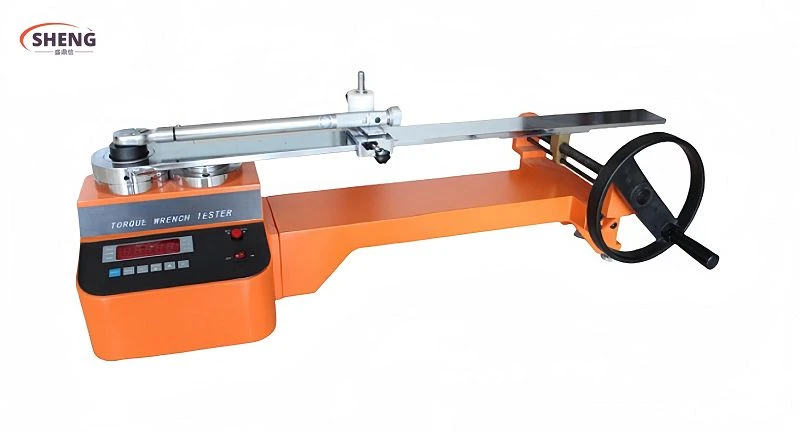

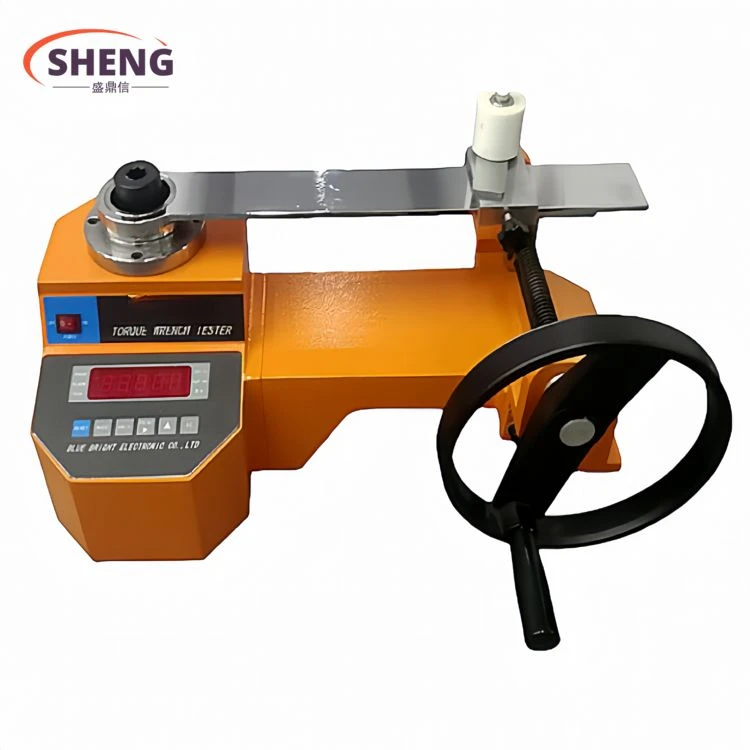

Phau ntawv hluav taws xob torque tester yog portable, high-precision calibrate cuab yeej tsim tshwj xeeb rau calibrating thiab xyuas ntau yam ntawm phau ntawv torque wrenches. Nrog nws qhov ruaj khov thiab txhim khu kev ntsuas kev ua tau zoo, nrog rau kev ntsuas kev ntsuas siab, nws ua kom qhov tseeb ntawm torque wrenches. Siv dav hauv kev tsim khoom, kev kho tsheb, kev tshawb fawb tshawb fawb, thiab lwm yam lag luam.
|
Qauv |
Torque ntau |
Qhov hnyav |
Maxeffective caj npab [mm] |
Sab nraud qhov ntev [mm] |
Tus tsav tsheb |
||
|
L |
W |
H |
|||||
|
SDX-2CT |
0.2-2 |
25 |
|
280 |
90 |
170 |
6.3 |
|
SDX-5CT |
0.5-5 |
25 |
|
280 |
90 |
170 |
6.3 |
|
SDX-10CT |
1-10 |
25 |
600 |
800 |
440 |
340 |
6.3/10 |
|
SDX-30CT |
3-30 |
25 |
600 |
800 |
440 |
340 |
6.3/10 |
|
SDX-50CT |
5-50 |
25 |
600 |
800 |
440 |
340 |
6.3/10 |
|
SDX-100CT |
10-100 |
25 |
750 |
950 |
440 |
340 |
6.3/10/12.5 |
|
SDX-200CT |
20-200 |
25 |
750 |
950 |
440 |
340 |
6.3/10/12.5 |
|
SDX-300CT |
30-300 |
25 |
750 |
950 |
440 |
340 |
6.3/10/12.5 |
|
SDX-500CT |
50-500 |
25 |
750 |
950 |
440 |
340 |
10/12.5/20 |
|
SDX-1000CT |
100-1000 |
60 |
1200 |
1400 |
600 |
350 |
12.5/20/25 |
|
SDX-2000CT |
200-2000 |
65 |
1300 |
1600 |
800 |
550 |
20/25 |
|
SDX-3000CT |
300-3000 |
90 |
1800 |
2000 |
1000 |
550 |
20/25 |
|
SDX-5000CT |
500-5000 |
90 |
1800 |
2000 |
1000 |
550 |
20/25/38 |
|
SDX-10000CT |
1000-10000 |
90 |
1800 |
2000 |
1000 |
550 |
25/38/51 |
|
Precision |
±1% |
||||||
|
Zaub hom |
5-digit LED zaub |
||||||
|
Fais fab mov |
AC 220v-240v/50Hz |
||||||
Torque wrench tester yog ib yam khoom tshwj xeeb rau calibrating ntau yam torque wrenches thiab torque screwdrivers. Cov cuab yeej siv ib qho chip microcomputer ua tshuab thiab siv cov thev naus laus zis tshiab xws li digital filtering tsis siv neeg xoom kho thiab tsis muaj nyiaj them rau hauv software, uas ua rau tag nrho lub tshuab muaj cov yam ntxwv ntawm kev ntsuas ceev ceev, ntsuas qhov tseeb, thiab muaj zog tiv thaiv kev cuam tshuam. muaj peev xwm, thiab muaj ib qho kev kuaj mob tsis siv neeg. Nws qhov kev ntsuam xyuas yog qhov tseeb, kev ua haujlwm ruaj khov, kev ua haujlwm yog nplua nuj, thiab kev ua haujlwm yooj yim. Nws kuj tseem tuaj yeem nruab nrog RS -232 tus qauv interface thiab wireless kis tau tus mob kom xa cov ntaub ntawv tshawb pom mus rau lub khoos phis tawj rau kev ua haujlwm ntse, lossis txuas lub tshuab luam ntawv tshwj xeeb los ua kom tiav qhov kev txiav txim siab txiav. Nyob rau tib lub sijhawm, qhov ntsuas no ua raws li cov thev naus laus zis hauv kev lag luam, thiab cov ntsuas tau mus txog qib kev coj ua hauv tsev. Nws yog cov cuab yeej siv tau zoo heev thiab tau siv dav hauv kev lag luam tsim hluav taws xob, lub teeb kev lag luam, tshuab, cav, lub tshuab hluav taws xob sab hauv, hluav taws xob tsheb, maus taus, tsheb, nkoj, thiab dav hlau, nrog rau metrology thiab xeem departments.
