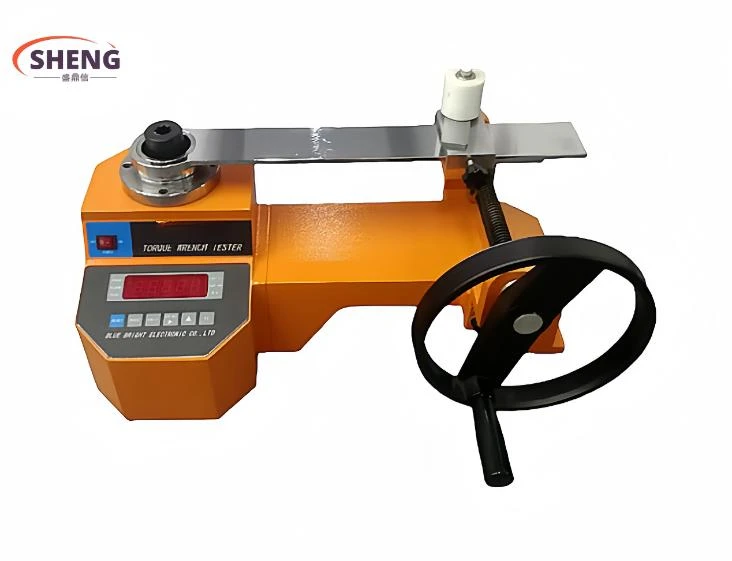

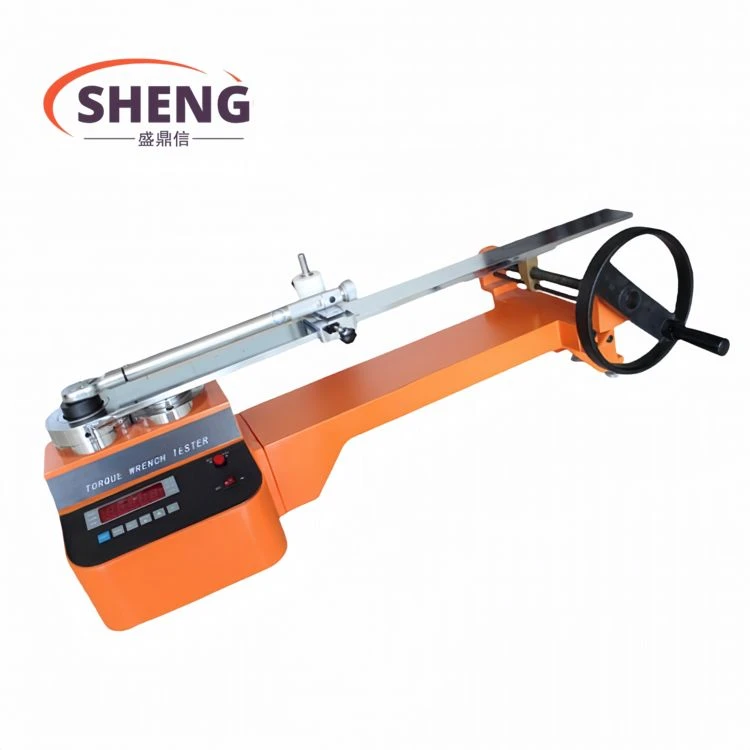

Digital torque wrench tester yog qhov ntsuas ntsuas siv los ntsuas ntau yam torque wrenches.
Khoom nta
1. Microprocessor digital technology;
2. LED zaub;
3. Humanized tsim, adjustable zaub saib lub kaum sab xis;
4. Clockwise / counterclockwise (torque kev taw qhia) zaub;
5. Tswb tus nqi teeb tsa muaj nuj nqi;
6. Tsis siv neeg hloov pauv ntawm peb ntsuas ntsuas (lbf.in kgf.cm Nm);
7. Qhov siab tshaj plaws torque ncov tuav muaj nuj nqi, uas tuaj yeem tsim qhov tseeb torque tus nqi rau cov cuab yeej hauv kev sim;
8. Cov qauv yooj yim thiab ruaj khov, kev tsim qauv tsim qauv;
9. Kev ua haujlwm ruaj khov, yooj yim rau kev khiav lag luam.
tu thiab ceev faj
1. Tsis txhob siv cov cuab yeej torque uas tshaj qhov siab tshaj plaws uas tau tso cai kom tsis txhob ua rau lub ntsuas hluav taws xob puas tsuaj!
2. Txawm hais tias lub cuab yeej siv tau ib txwm siv tom qab nws qhib, nws raug nquahu kom preheat nws rau 10 feeb kom ntseeg tau tias qhov ntsuas tau zoo tshaj plaws!
3. Vim tias cov cuab yeej siv tau zoo heev rau ib puag ncig, cov zaub yuav tsis nyob ntawm xoom thaum lub ntsuas hluav taws xob qhib. Nias tus yuam sij "RESET" rov pib dua;
4. Tsis txhob siv cov twj paj nruag hauv qab no:
⑴ Tej thaj chaw muaj dej, roj los yog lwm yam kua;
⑵ Cov cheeb tsam uas muaj kev vibration lossis plua plav lossis cua kub;
⑶ Cov av noo siab (tsim av noo: 30%-70%);
⑷ Cov cheeb tsam uas muaj qhov kub thiab txias (qhov kub zoo: 10-40ºC);
⑸ Ib puag ncig tej yam kev mob uas yuav ua rau kev ua hauj lwm tsis ua hauj lwm los yog precision distortion;
5. Tsis txhob disassemble lub twj paj nruag los yog calibrate ntau yam yam tsis tau kev tso cai, vim qhov no yuav cuam tshuam rau kev ua tau zoo ntawm lub twj paj nruag;
6. Tsis txhob muab cov twj tso kua mis tso rau hauv qhov chaw siab lossis qhov chaw txias, qhov chaw uas cov tee dej tau yooj yim condensed hauv lub ntsuas, ua rau kev ua haujlwm tsis zoo;
7. Tsis txhob ntsuas lub load uas tshaj 120% ntawm qhov siab tshaj plaws torque tus nqi ntawm qhov ntsuas ntau!
8. Tsis txhob siv rauj lossis lwm yam cuab yeej cuam tshuam los ntaus lub taub hau sensor!
9. Ntxuav lub twj tso kua mis tsis tu ncua thiab siv me me ntawm butter rau qhov zawv zawg, bearings thiab lwm qhov chaw.
Technical specifications
|
Qauv |
Torque ntau |
Qhov hnyav |
Maxeffective caj npab [mm] |
Sab nraud qhov ntev [mm] |
Tus tsav tsheb |
||
|
L |
W |
H |
|||||
|
SDX-1000CT-01 |
0.2-2 |
25 |
|
280 |
90 |
170 |
6.3 |
|
SDX-1000CT-02 |
0.5-5 |
25 |
|
280 |
90 |
170 |
6.3 |
|
SDX-1000CT-03 |
1-10 |
25 |
600 |
800 |
440 |
340 |
6.3/10 |
|
SDX-1000CT-04 |
3-30 |
25 |
600 |
800 |
440 |
340 |
6.3/10 |
|
SDX-1000CT-05 |
5-50 |
25 |
600 |
800 |
440 |
340 |
6.3/10 |
|
SDX-1000CT-06 |
10-100 |
25 |
750 |
950 |
440 |
340 |
6.3/10/12.5 |
|
SDX-1000CT-07 |
20-200 |
25 |
750 |
950 |
440 |
340 |
6.3/10/12.5 |
|
SDX-1000CT-08 |
30-300 |
25 |
750 |
950 |
440 |
340 |
6.3/10/12.5 |
|
SDX-1000CT-09 |
50-500 |
25 |
750 |
950 |
440 |
340 |
10/12.5/20 |
|
SDX-1000CT-10 |
100-1000 |
60 |
1200 |
1400 |
600 |
350 |
12.5/20/25 |
|
SDX-1000CT-11 |
200-2000 |
65 |
1300 |
1600 |
800 |
550 |
20/25 |
|
SDX-1000CT-12 |
300-3000 |
90 |
1800 |
2000 |
1000 |
550 |
20/25 |
|
SDX-1000CT-13 |
500-5000 |
90 |
1800 |
2000 |
1000 |
550 |
20/25/38 |
|
SDX-1000CT-14 |
1000-10000 |
90 |
1800 |
2000 |
1000 |
550 |
25/38/51 |
|
Precision |
±1% |
||||||
|
Zaub hom |
5-digit LED zaub |
||||||
|
Fais fab mov |
AC 110v / 230v / 50Hz |
||||||
