Khoom Description

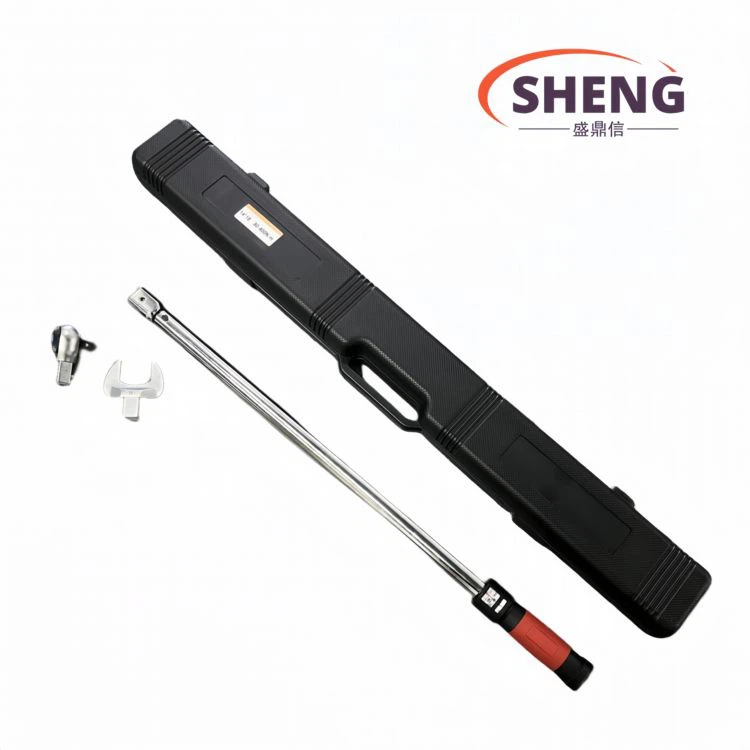

Lub tes Preset torque ciaj ntswj muab meej thiab txhim khu kev qha torque tswj. Nws yog lub teeb yuag, ruaj khov, thiab yooj yim rau kev khiav lag luam, ua rau nws yog ib qho kev pabcuam zoo hauv cov txheej txheem fastening.
Khoom Specifications
|
Qauv |
Torque ntau |
Fine Scale |
Ntev |
Qhov hnyav |
Tus tsav tsheb |
|
SDX-100HP-001 |
5-30 |
0.25 |
255 |
0.45 |
3/8" |
|
SDX-100HP-002 |
10-50 |
0.5 |
307 |
0.55 |
3/8" |
|
SDX-100HP-003 |
10-60 |
0.5 |
307 |
0.55 |
3/8" |
|
SDX-100HP-004 |
20-100 |
1 |
420 |
0.9 |
1/2" |
|
SDX-100HP-005 |
40-180 |
1 |
525 |
1.5 |
1/2" |
|
SDX-100HP-006 |
40-200 |
1 |
525 |
1.5 |
1/2" |
|
SDX-100HP-007 |
50-230 |
1 |
525 |
1.5 |
1/2" |
|
SDX-100HP-008 |
60-300 |
1.5 |
680 |
2.85 |
1/2" |
|
SDX-100HP-009 |
60-360 |
2 |
680 |
3.15 |
3/4" |
|
SDX-100HP-010 |
100-400 |
2 |
780 |
3.15 |
3/4" |
|
SDX-100HP-011 |
100-450 |
2.5 |
890 |
3.5 |
3/4" |
|
SDX-100HP-012 |
100-500 |
2.5 |
890 |
3.5 |
3/4" |
|
SDX-100HP-013 |
150-600 |
3 |
890 |
3.5 |
3/4" |
|
SDX-100HP-014 |
200-680 |
4 |
1098 |
6.5 |
3/4" |
|
SDX-100HP-015 |
200-760 |
4 |
1098 |
6.5 |
3/4" |
|
SDX-100HP-016 |
200-800 |
4 |
1098 |
6.5 |
3/4" |
|
SDX-100HP-017 |
200-1000 |
5 |
1295 |
7.8 |
1" |
|
SDX-100HP-018 |
400-1200 |
5 |
1300 |
8 |
1" |
|
SDX-100HP-019 |
450-1500 |
7 |
1300 |
8.5 |
1" |
|
SDX-100HP-020 |
720-2000 |
16 |
1300 |
8.5 |
1" |
|
SDX-100HP-021 |
900-2500 |
20 |
1400 |
14.45 |
1" |
|
SDX-100HP-022 |
1000-3000 |
30 |
1400 |
14.8 |
1" |
|
SDX-100HP-023 |
1600-4000 |
30 |
1500 |
25 |
1-1/2" |
|
SDX-100HP-024 |
2200-5000 |
40 |
1605 |
26.5 |
1-1/2" |
|
SDX-100HP-025 |
2800-6000 |
40 |
1605 |
26.5 |
1-1/2" |
Daim ntawv thov
Lub tes Preset torque wrench yog ib qho cuab yeej tsim los rau kev tswj cov ntsia liaj qhov rooj zawm quab yuam, nrog rau cov cuab yeej hloov kho torque uas tso cai rau cov neeg siv los teeb tsa tus nqi xav tau. Lub ciaj ntswj cia li nres torque tso zis thaum lub preset tus nqi yog mus txog, tiv thaiv over-tightening los yog under-tightening. Nov yog qee qhov tseem ceeb ntawm daim ntawv thov scenarios:
1. ** Kev Tsim Kho Kev Lag Luam: Siv rau fastening nyob rau hauv steel qauv vaj tse los txhim kho stability thiab durability. Piv txwv li, nruj bolts nyob rau hauv lub tsev tsim kom muaj kev ruaj ntseg thiab stability.
2. ** Kev Thauj Khoom: Siv dav hauv kev saib xyuas cov tsheb ciav hlau ceev, subways, dav hlau, tsheb ciav hlau, thiab tsheb. Xyuas kom meej tias lub torque ntawm bolts thiab txiv ntseej yog nyob rau hauv qhov tsim nyog, ncua lub neej ntawm lub tsheb thiab ua kom muaj kev nyab xeeb ntawm kev mus ncig.
3. **Automotive Industry: Qhov tseem ceeb hauv kev tsim thiab kho tsheb. Siv dav rau kev tshem tawm thiab txhim kho cov log tsheb, kom ntseeg tau qhov tseeb torque tus nqi rau lub log bolts, thiab tsis txhob muaj kev puas tsuaj vim kev sib tsoo ntau dhau. Nws kuj muab qhov tseeb torque thaum lub sij hawm fastening ntawm automotive Cheebtsam, tseem ceeb heev rau lub tsheb kev nyab xeeb thiab kev ntseeg tau.
4. ** Mechanical Manufacturing and Maintenance: Siv rau kev tswj xyuas qhov ceev ceev thaum lub sij hawm sib dhos ntawm cov cuab yeej siv tshuab. Ua kom muaj kev ua haujlwm ib txwm muaj thiab txuas ntxiv lub neej kev pabcuam ntawm cov tshuab.
5. **Aerospace: nruj nruj raws li qhov yuav tsum tau ua vim muaj kev ua haujlwm hnyav. Ua kom muaj kev nruj nruj ntawm bolts, tiv thaiv qhov chaw los ntawm kev xoob lossis ua tsis tiav thaum lub davhlau, yog li ua kom muaj kev nyab xeeb ntawm kev ya davhlau.
6. ** Lwm Cov Kev Lag Luam: Siv rau hauv cov khoom siv hluav taws xob, lub zog, kev tsheb ciav hlau, thiab lwm yam. Piv txwv li, fastening screws hauv cov khoom siv hluav taws xob rau kev sib txuas kom ntseeg tau, nruj bolts hauv cov khoom siv hluav taws xob los xyuas kom muaj kev ua haujlwm zoo, thiab kev ruaj ntseg bolts hauv cov khoom siv railway rau kev nyab xeeb kev thauj mus los.
Zuag qhia tag nrho, txhais tes Preset torque wrench yog qhov tseem ceeb hauv ntau qhov chaw, muab kev tswj xyuas meej ntawm cov ntsia liaj qhov rooj zawm quab yuam, ua rau nws yog ib qho khoom siv tsis tseem ceeb rau kev teeb tsa, kev saib xyuas, thiab disassembly ntawm ntau yam khoom siv tshuab.
FAQ
Q: Koj ua li cas preset tus nqi torque?
A: Koj tuaj yeem yooj yim preset qhov xav tau torque tus nqi los ntawm kev tig cov cuab yeej hloov kho ntawm lub taub hau lub taub hau. Thov xa mus rau phau ntawv qhia cov khoom kom paub meej cov lus qhia.
Q: Puas tuaj yeem hloov kho ntau yam yog tias tsis tau teev nyob rau hauv cov lus qhia tshwj xeeb?
A: Yog lawm, raws li cov chaw tsim khoom qub, peb tuaj yeem hloov kho qhov ntau thiab tsawg ntawm lub torque ciaj ntswj raws li koj qhov kev xav tau tshwj xeeb thiab tseem muab kev pabcuam OEM.
