Khoom Description
Turnbuckles, tseem hu ua turnbuckles lossis rigging khi-downs, yog cov khoom siv ceev ceev. Lawv qhov tshwj xeeb sab laug-tes thiab sab xis-tes xov tsim tso cai rau cov neeg siv tau yooj yim kho qhov nruj ntawm rigging xws li cov hlua hlau. Lawv tsis tsuas yog siv dav hauv kev thauj mus los thiab kev thauj khoom, xws li cov khoom thauj khoom thauj, kev sib txuas sling, thiab steel qauv cable rod kho, kom ruaj khov ntawm cov khoom thauj thaum thauj; lawv kuj tseem ua lub luag haujlwm tseem ceeb hauv kev tso cov ncej high-voltage thiab ntauwd rub rods ntawm cov kab hluav taws xob, ua kom muaj kev ruaj ntseg thiab kev nyab xeeb ntawm kev xa hluav taws xob. Tsis tas li ntawd, turnbuckles kuj tau siv dav hauv kev tsim kho vaj tsev cog qoob loo, kev hloov kho txoj hlua hauv kev lag luam shipbuilding, thiab kev nruj ntawm cov khoom siv sib txuas lus, qhia lawv cov kev ua haujlwm hla kev lag luam.

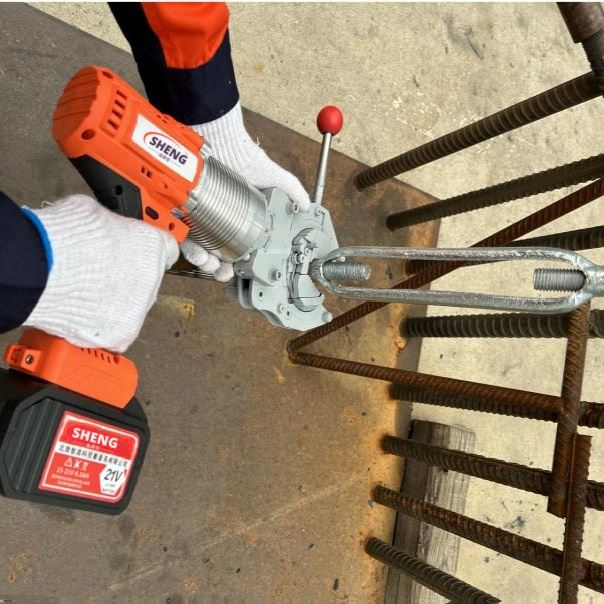

Hluav taws xob turnbuckle bolt kev twb kev txuas wrench yog ib qho hluav taws xob ciaj ntswj tshwj xeeb rau kev kho qhov nruj ntawm turnbuckle bolts. Nws yog tsim rau turnbuckle bolts ntawm txawv specifications nrog ib tug turnbuckle kawg txoj kab uas hla ntawm 42 hli (xws li 42 hli).
Khoom Parameters
|
Qauv |
SDX-200RLB |
SDX-400RLB |
|
Qhov hluav taws xob |
21V |
21V |
|
Hwj chim |
900W |
900W |
|
Ceev |
75r / min |
60r / min |
|
Torsion |
350N.M |
350N.M |
|
Muaj cov xwm txheej |
Txawv specifications ntawm turnbuckle bolts nrog ib txoj kab uas hla ntawm 32mm (nrog) los yog tsawg dua. |
Txawv specifications ntawm turnbuckle bolts nrog ib txoj kab uas hla ntawm 42mm (nrog) los yog tsawg dua. |
|
Qhov hnyav |
6, 5kg |
9, 5kg |
|
Ntim Loj |
565mm * 130mm * 395mm |
570mm * 400mm * 130mm |
|
suav nrog |
Cov cuab yeej siv, M5 hexagon ciaj ntswj, phau ntawv qhia, daim ntawv pov thawj, lub thawv cia |
M6 hexagon ciaj ntswj, M8 hexagon ciaj ntswj, kev qhia phau ntawv, daim ntawv pov thawj ntawm conformity, portable cia thawv |
|
Lus ceeb toom |
Tej zaum yuav muaj kev sib txawv ntawm cov khoom tiag, thiab qhov hnyav, ntim loj, thiab lwm yam yuav raug rau cov khoom tiag. |
|

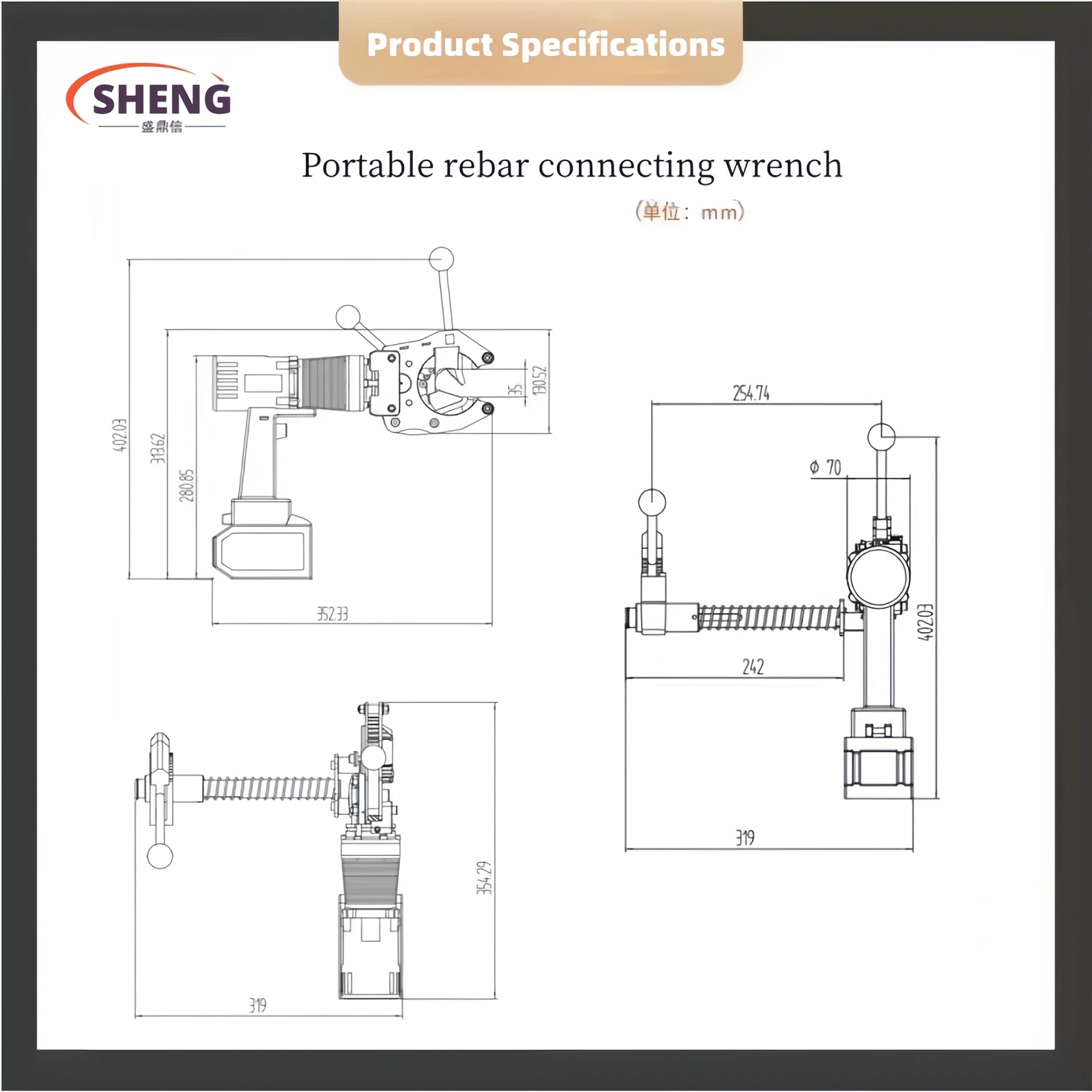

Khoom specifications thiab qhov ntev
