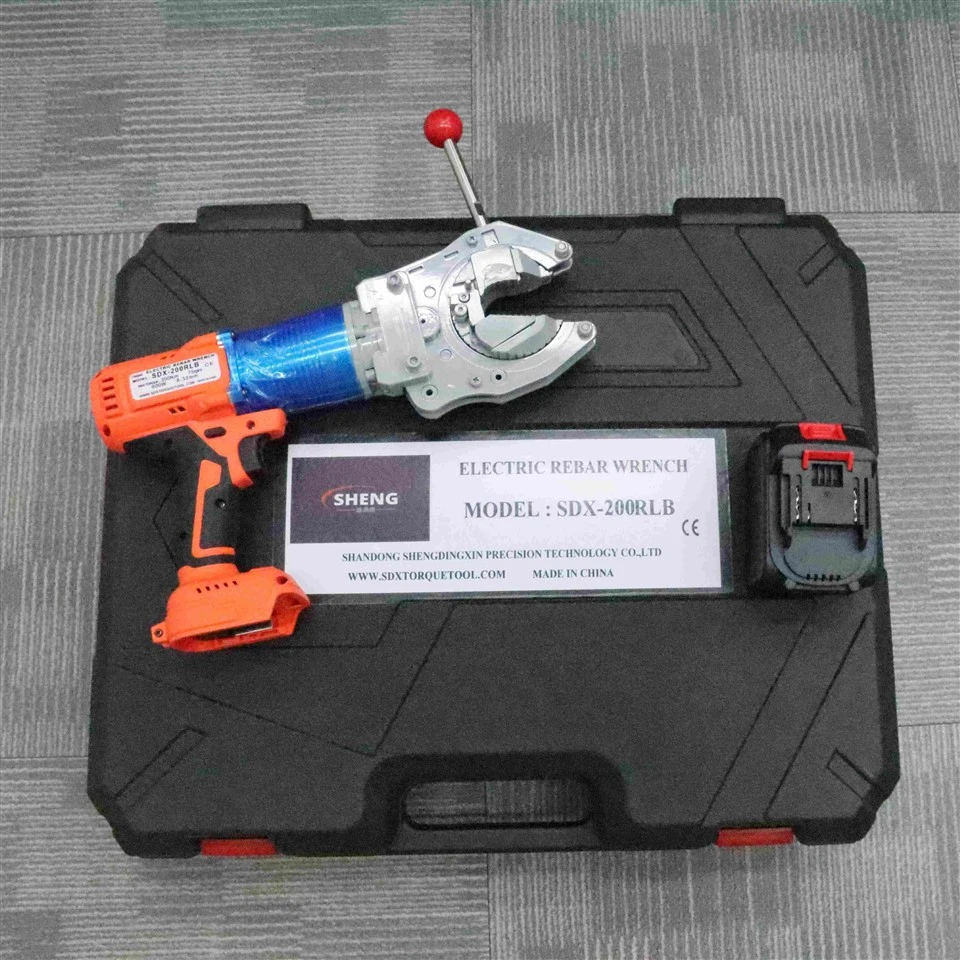

Portable Electric Rebar Coupler Wrench

Portable electric rebar coupler ciaj ntswj yog ib qho hluav taws xob yeeb nkab clamp wrench tshwj xeeb uas tsim los ntawm SDX uas yog tsim rau qhov chaw nqaim. Qhov sib nrug ntawm cov hlau tuav ntawm ib sab tsuas yog xav tau 5cm. Nws yog me me thiab lub teeb, muaj zog thiab ruaj khov, thiab muaj kev hlub los ntawm feem ntau ntawm cov neeg ua haujlwm pem hauv ntej.

Xa kev nug

Hauj lwm lawm

Cov khoom zoo

1. Kho lub puab tsaig, nrawm dua thiab yooj yim dua

Ib-nias hloov ntawm lub puab tsaig qhib loj

Lub puab tsaig yog tsim rau clamping threaded steel tuav, lub tes tsho, thiab ntau yam kav dej, tsis tas yuav hloov lub puab tsaig hauv nruab nrab.

2. Lithium roj teeb + plug-in dual-siv

Lithium roj teeb thiab plug-in tuaj yeem hloov tau raws li koj xav tau txhua hnub

21V Makita roj teeb tuaj yeem teeb tsa tau yooj yim, thiab lub roj teeb muaj ntau yam siv tau

3. brushless lub cev muaj zog

Stepless hloov ceev, pem hauv ntej thiab rov qab

Lub zog muaj zog, siab torque, tsis tas yuav hloov cov txhuam hniav

Khoom parameters

SDX-200RLB Model Portable Electric Rebar Coupler Wrench Product Parameters

Qhov hluav taws xob	21V
Hwj chim	900W
Ceev	75r / min
Torsion	350N.M
Qhov hnyav	6, 5kg
Ntim Loj	565mm * 130mm * 395mm

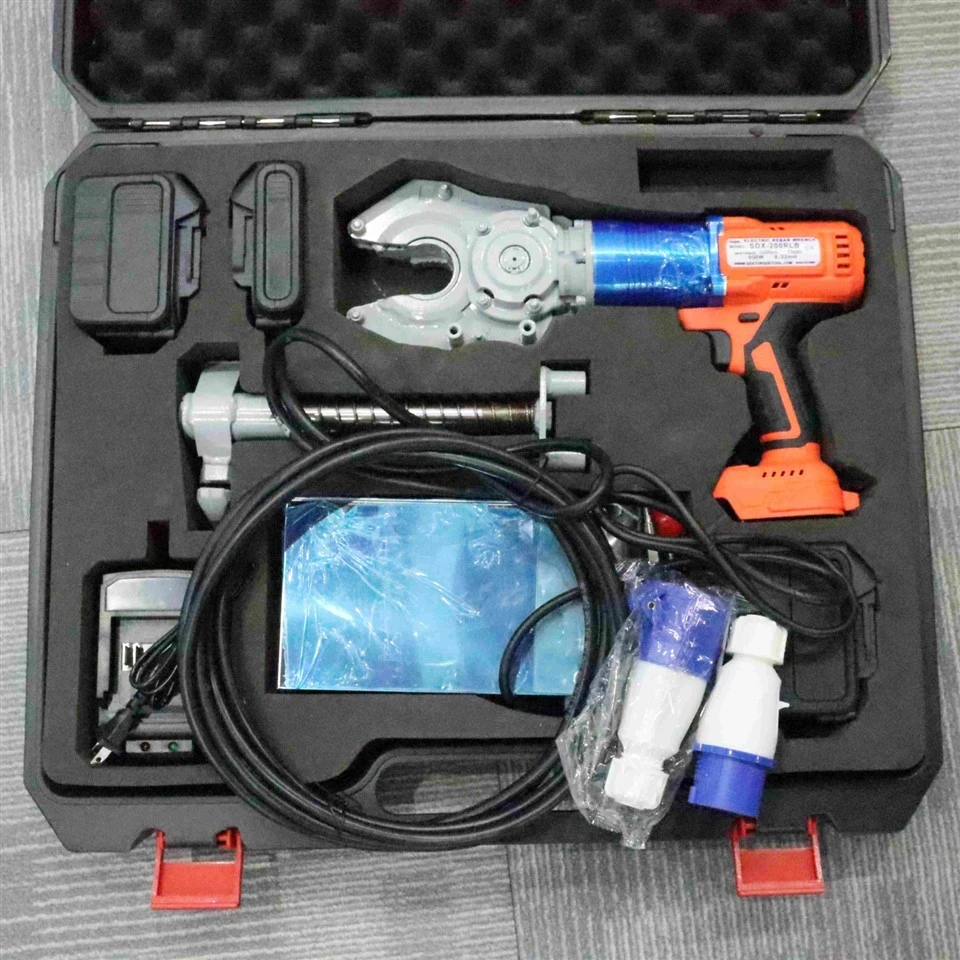

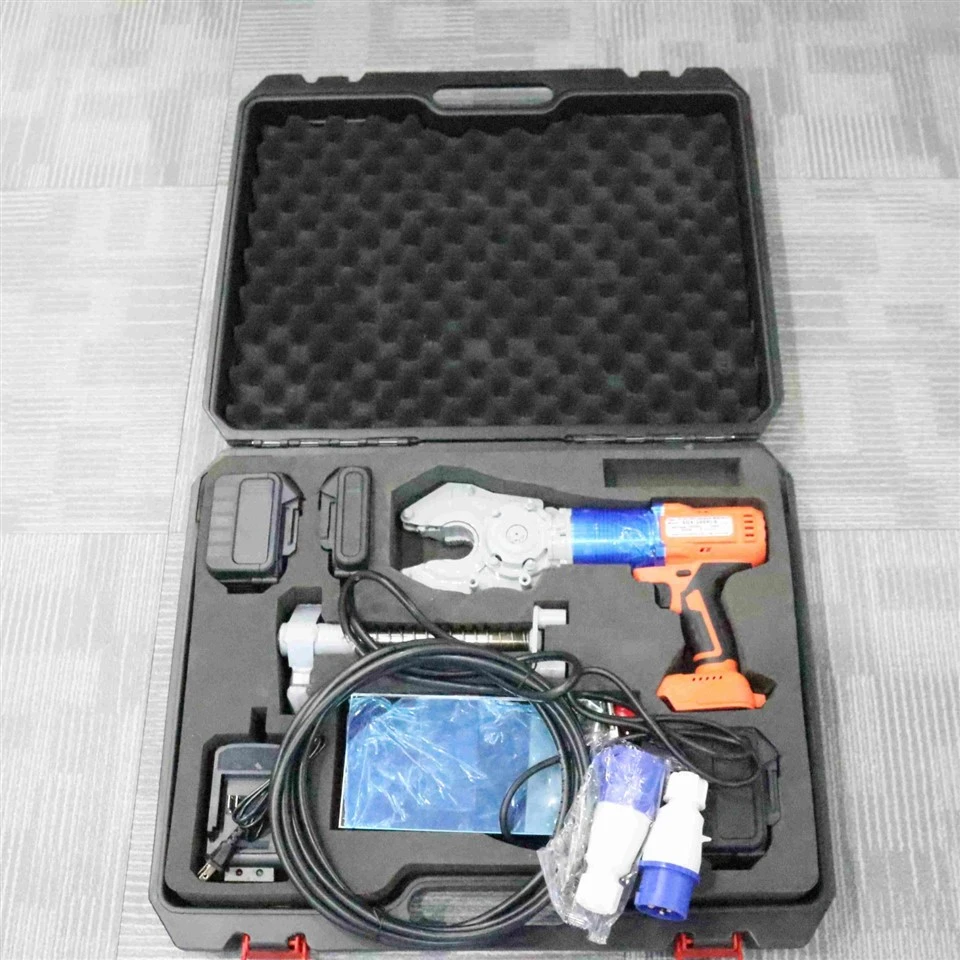

suav nrog	Cov cuab yeej siv, M5 hexagon ciaj ntswj, phau ntawv qhia, daim ntawv pov thawj, lub thawv cia
Lus ceeb toom	Tej zaum yuav muaj kev sib txawv ntawm cov khoom tiag, thiab qhov hnyav, ntim loj, thiab lwm yam yuav raug rau cov khoom tiag.

Khoom specifications

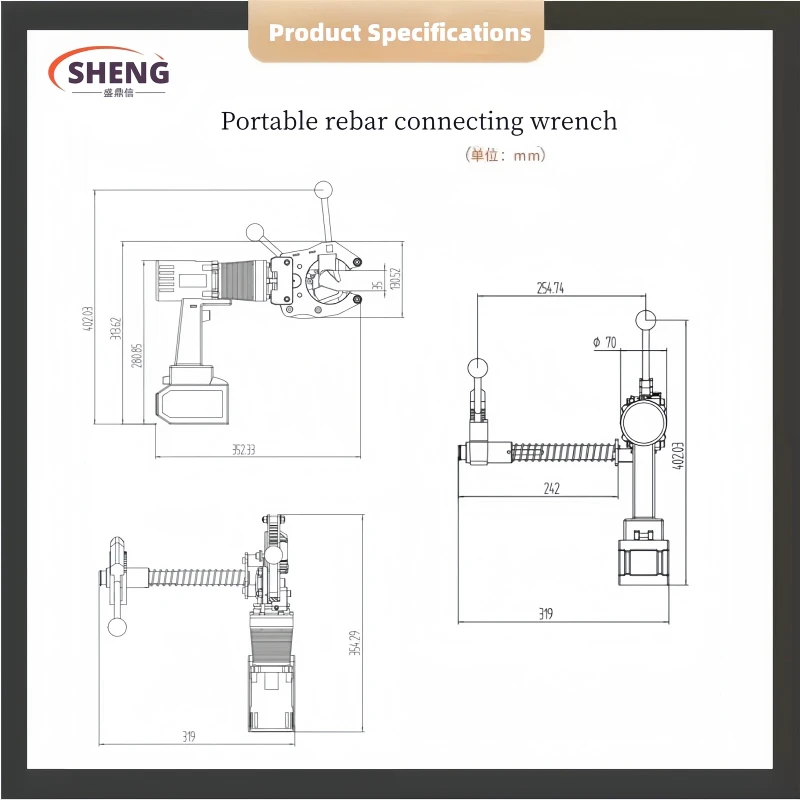

rebar torque wrench dimensions

Scope ntawm daim ntawv thov

1. Threaded steel tuav nrog ib txoj kab uas hla ntawm 8-32mm, screwing steel tuav.

2. Lub tes tsho nrog ib txoj kab uas hla ntawm 12-20mm (txoj kab uas hla ntawm 19-31mm), lub tes tsho screwing.

3. Threading turnbuckle bolts, steel kav, cov kav dej tua hluav taws thiab lwm yam ntau yam kav, shafts, screws nrog txoj kab uas hla ntawm 32mm (xws li 32mm) lossis tsawg dua.

Daim ntawv thov scenarios

Portable electric rebar coupler ciaj ntswj tuaj yeem siv rau kab rov tav thiab ntsug steel bar threading, thiab tseem tuaj yeem siv rau kev tsim kho sib txawv xws li txuas lub tes tsho steel thiab steel tawb, thiab threading turnbuckle bolt tighteners.

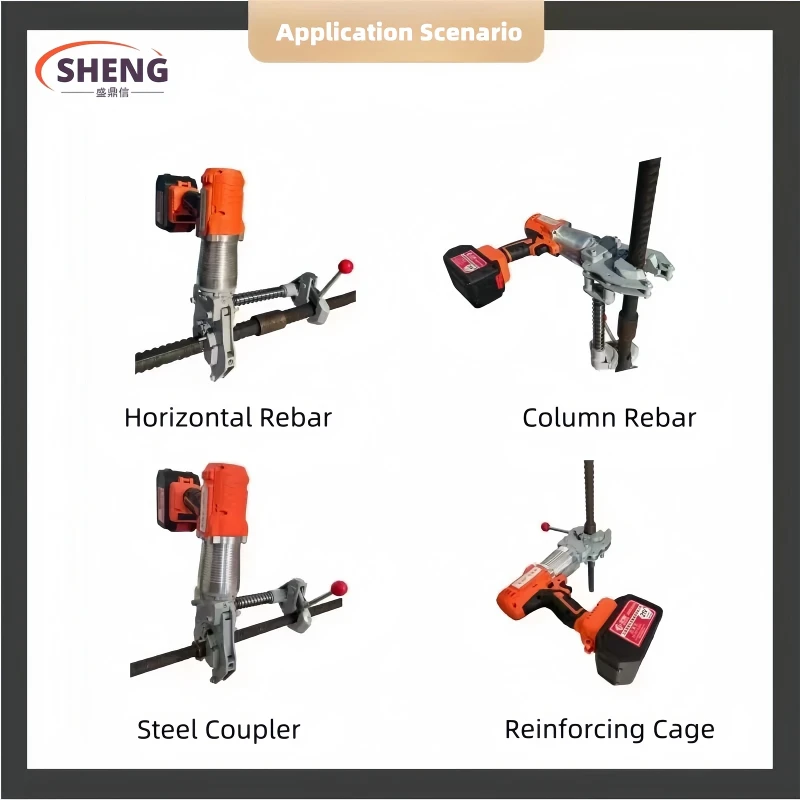

rebar torque wrench application
