Taw qhia
Lub plug-in hluav taws xob rebar txuas torque ciaj ntswj yog peb cov khoom tshiab kom tau raws li qhov xav tau ntawm kev sib txuas rebar hauv kev tsim kho niaj hnub thiab kev lag luam. Nws yog txawm peem rau nrog ib tug high-kev ua tau zoo lub cev muaj zog thiab ib tug sophisticated torque tswj system los xyuas kom meej meej thiab zoo torque rog thaum lub sij hawm rebar kev twb kev txuas txheej txheem. Nyob rau tib lub sijhawm, nws cov plug-and-play tsim ua rau kev ua haujlwm yooj yim dua, txhim kho kev ua haujlwm zoo.

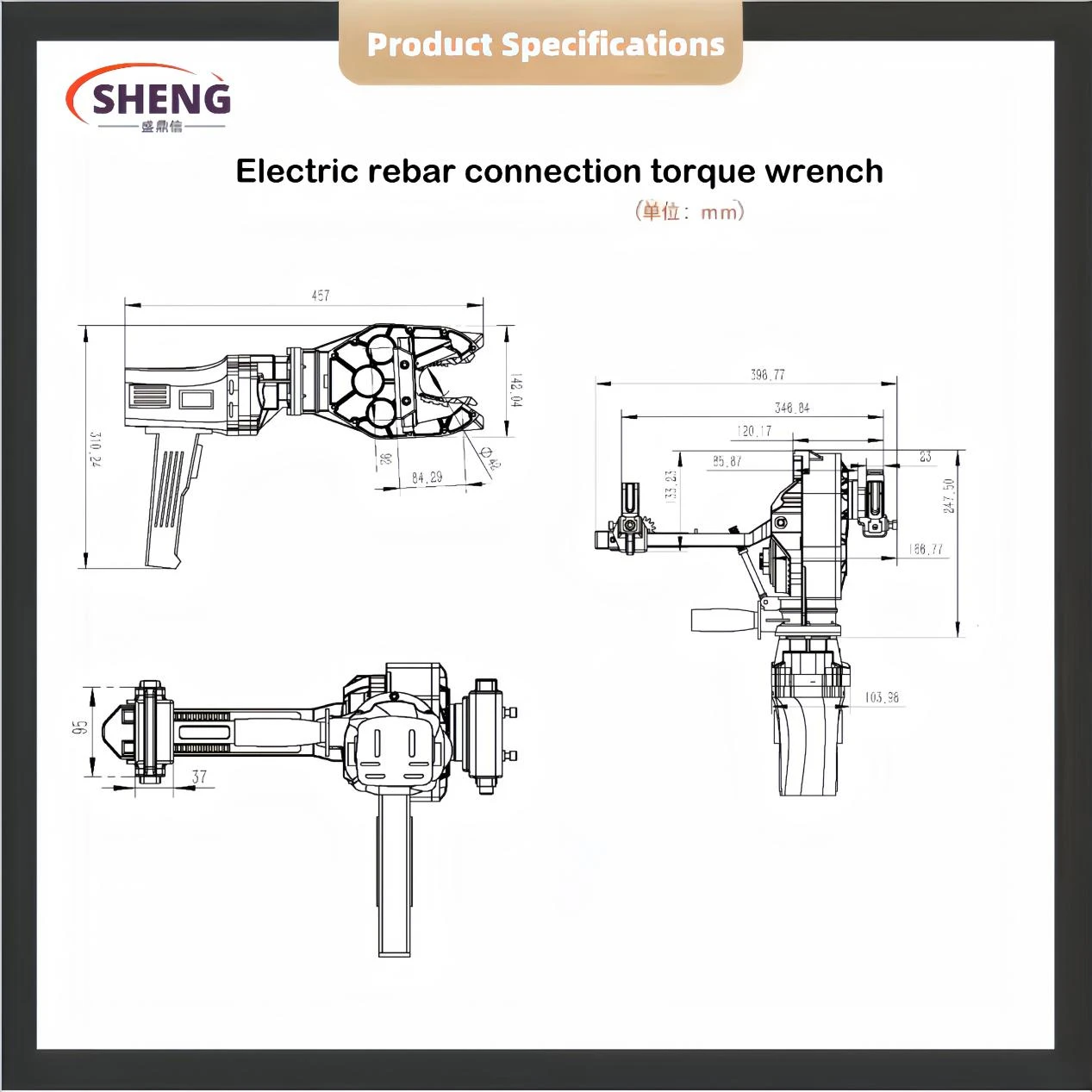

Khoom Parameter/Specification
Rebar txoj kab uas hla: 16-40mm
Kev siv hluav taws xob: 2600W
Lub hwj chim: AC 110 / 230V
Max torque: 400N.M
Ro ceev: 0-50r/min
Qhov hnyav tag nrho: 20.6 kg
|
Qauv |
Hom |
Claws Hom |
Qhov hluav taws xob |
Ntau zaus |
Rated zog |
Rotating Ceev |
Torque |
Qhov hnyav |
Rebar Txoj kab uas hla |
|
SDX-400RL |
Cov kab hluav taws xob |
Kab rov tav Rebar claws Kem rebar claws Hlau coupling claws Txhim kho lub tawb |
110V/230V |
50hz ~ 60hz |
2600W |
50r / min |
400N.m |
20.6 |
1.Rebar txoj kab uas hla 16-40mm 2.Steel Coupler txoj kab uas hla 24-60mm 3.Reinforceing tawb coupler txoj kab uas hla 24-60mm |
Khoom nta
Lub cev muaj zog:
Nruab nrog 2600W lub cev muaj zog, nws muab lub zog muaj zog thiab kev ua haujlwm ruaj khov rau lub sijhawm ua haujlwm ntev. Cov txhuam hniav tuaj yeem hloov tau sai thiab yooj yim.
Stepless Variable Speed thiab Reversible Rotation:
Tso cai tswj kev ceev raws li qhov xav tau ntawm daim ntawv thov, nrog rau ib qho kev hloov pauv rau pem hauv ntej thiab thim rov qab.

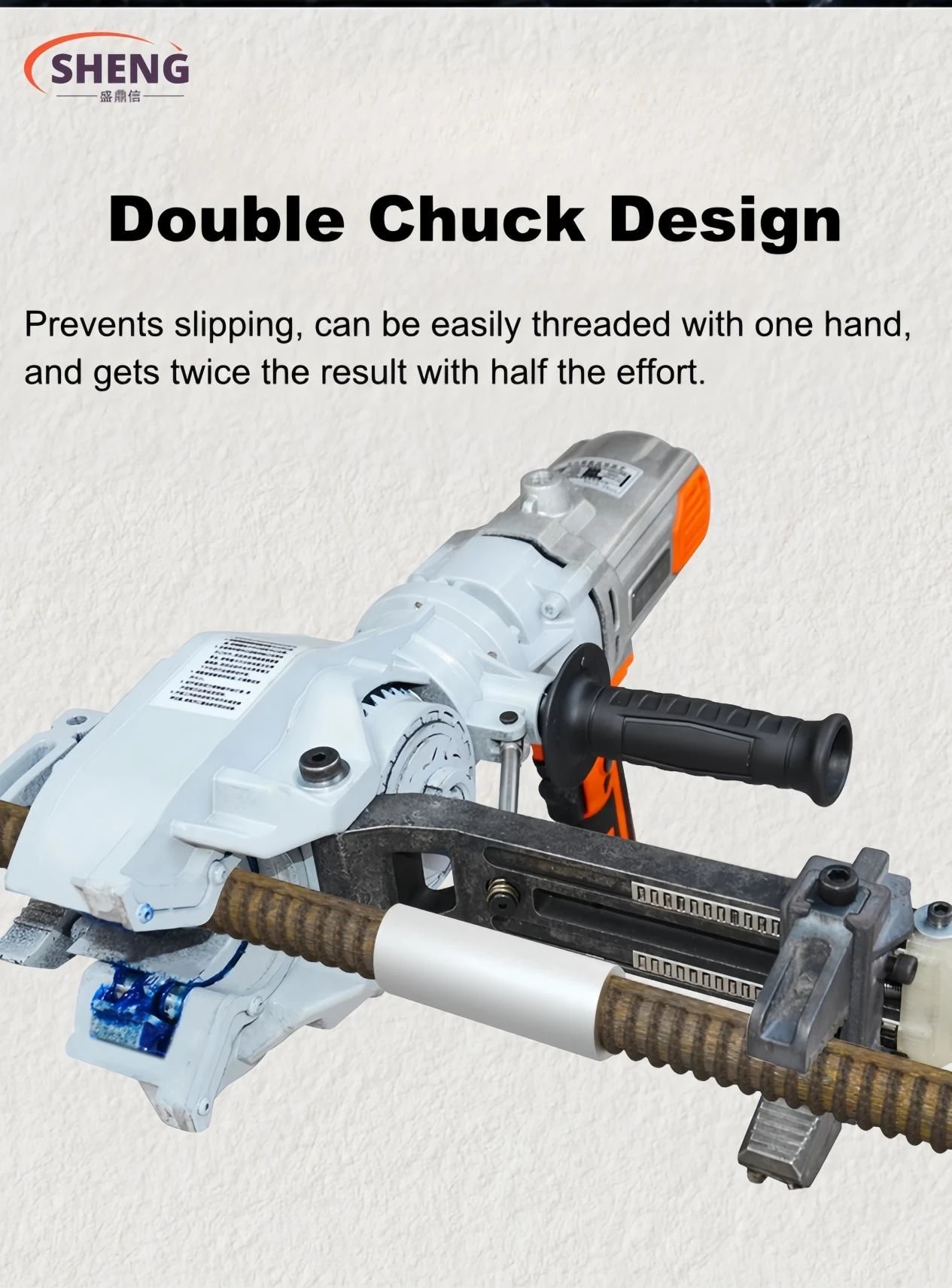

Dual Slide Rail Arm System:
Counteracts thim rov qab torque, ua kom yooj yim thiab siv zog ua haujlwm nrog ib txhais tes. Lub auxiliary clamping claws tuav lub rebar ruaj ntseg yam tsis muaj slipping, zoo ua hauj lwm efficiency.
Adjustable claw Qhib Loj:
Lub claw qhib qhov loj tuaj yeem hloov kho los ntawm 16-40mm. Ua los ntawm quenched alloy, cov claws yog heev ruaj thiab hnav-resistant. Lawv muaj peev xwm tuav threaded rebar, sockets, couplers, thiab ntau yam kav dej, nrog interchangeable claw kom haum cov kev xav tau sib txawv.
Adjustable Torque:
Lub torque tuaj yeem hloov kho los ntawm 0-400Nm Lub torque nut nce lub zog thaum tig mus rau lub moos thiab txo lub zog thaum tig rov qab, ua tau raws li qhov xav tau ntawm lub zog ntawm 0-400Nm hauv rebar engineering.
.
Khoom siv
Rebar Connection Electric Wrench yog qhov zoo tagnrho rau ntau yam kev siv hauv kev tsim kho, suav nrog:
High-Rise Buildings: Ua kom muaj kev sib txuas ruaj ntseg rau cov pob zeb ua vaj tse.
Txuas hniav thiab Tunnels: Muab kev sib txuas txhim khu kev qha rau cov khoom siv hnyav uas siv rau hauv cov phiaj xwm kev tsim kho.
Industrial Facilities: Tsim nyog rau kev txhawb nqa kev lag luam loj.
Cov vaj tsev nyob: Ua kom nrawm ua haujlwm rebar hauv kev tsim kho vaj tse, txhim kho kev ua haujlwm tag nrho.
Kev Tsim Kho Kev Tsim Kho: Pab txhawb kev txhim kho ntawm kev ua vaj tse thiab pavements.
Kev xa khoom: Feem ntau peb muaj Tshuag txaus uas tuaj yeem xa tuaj tsis pub dhau 3 ~ 5 hnub ua haujlwm tom qab tau txais cov nyiaj them poob haujlwm; Yog tias tsis muaj Tshuag, peb xav tau 10 ~ 15 hnub ua haujlwm rau kev tsim khoom.
Kev them nyiaj: Peb tsuas yog txais 100% them nyiaj hauv tuam txhab ua ntej xa khoom

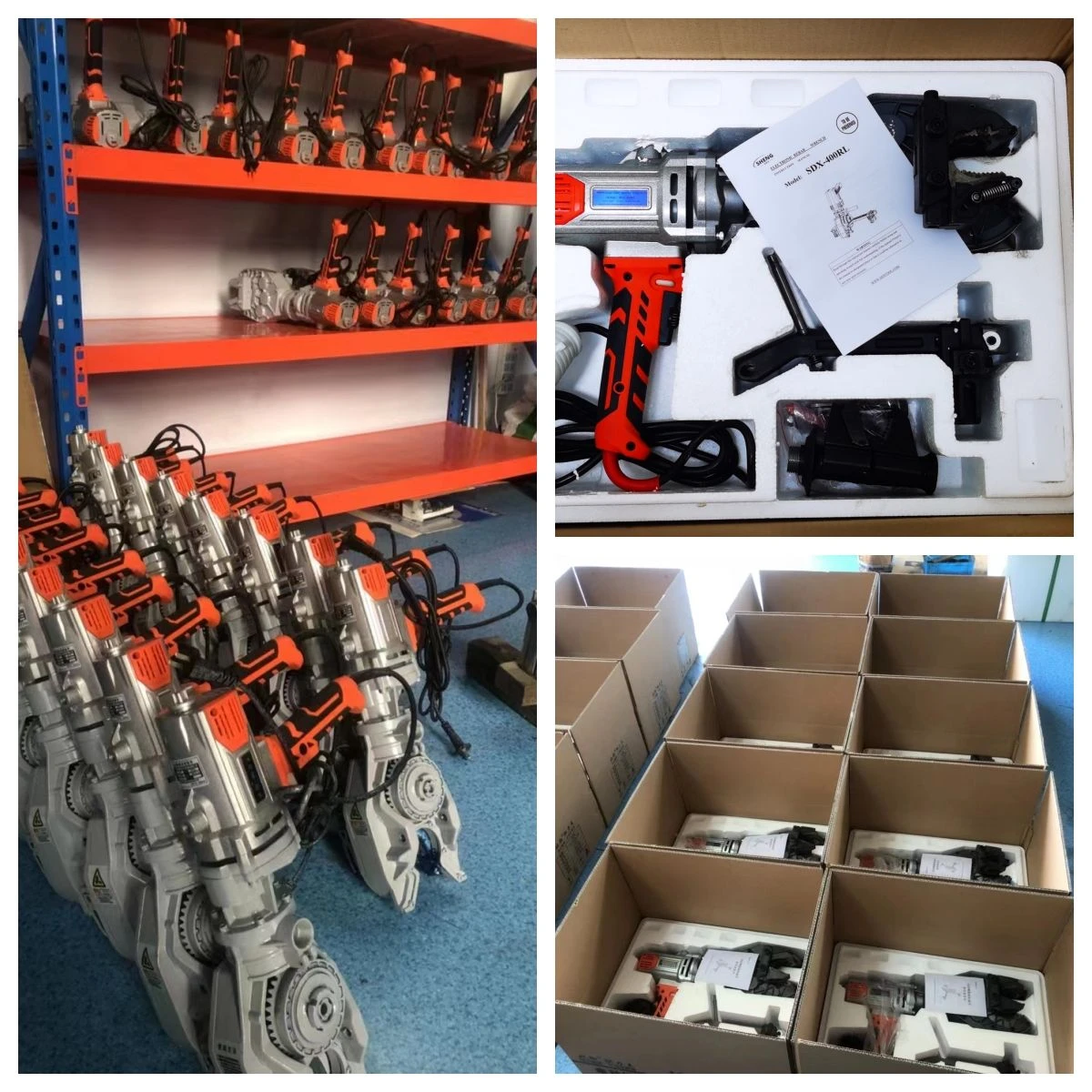

Pob:Lub thawv yas + Carton Box
Shipping Txoj Kev:Feem ntau peb xa lub tshuab los ntawm DHL, UPS lossis Fedex
