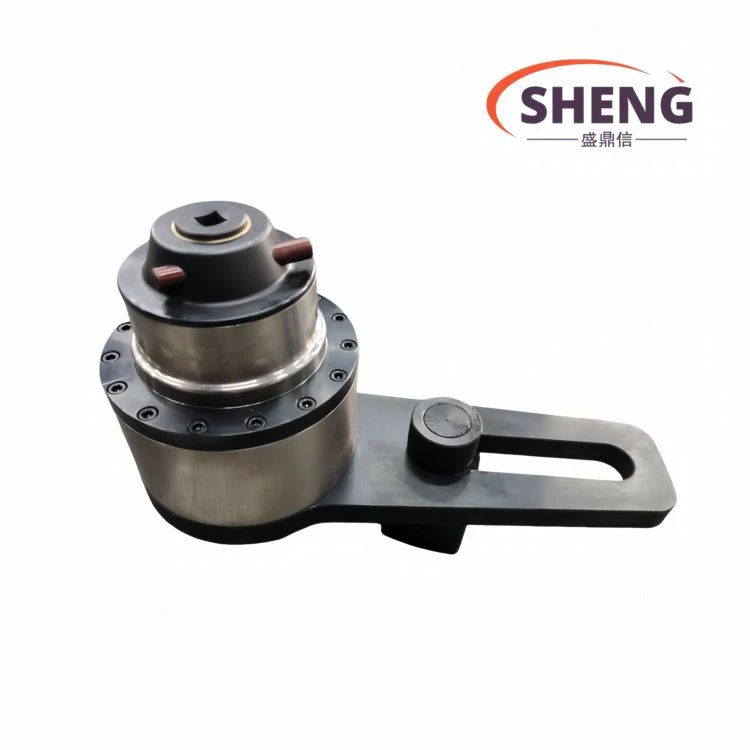

Flat Type Tes Torque Multiplier yog ib qho cuab yeej siv tau zoo thiab siv tau torque amplification. Los ntawm nws qhov tshwj xeeb planetary iav tsim, nws muaj peev xwm muab cov tswv yim torque, yooj yim tuav lub zawm thiab loosening ntawm high-strength bolts los yog ceev. Cov khoom no yog tus cwj pwm los ntawm nws txoj haujlwm yooj yim, kev nyab xeeb, thiab kev ntseeg tau, ua rau nws siv dav hauv ntau yam xwm txheej. Nws ua haujlwm zoo rau cov kws tshaj lij thiab cov kws tshaj lij los txhim kho kev ua haujlwm zoo thiab ua kom muaj kev nyab xeeb ntawm kev ua haujlwm.
Khoom Taw Qhia
Lub Flat Type Tes Torque Multiplier yog ib qho kev tsim qauv zoo thiab muaj txiaj ntsig zoo torque amplification cuab yeej. Nws siv lub zog hauv lub ntiaj teb cov iav iav mechanism kom ua tiav kev sib kis tau zoo torque thiab amplification. Cov neeg siv tsuas yog yuav tsum tau siv lub zog me me kom tau txais ob peb zaug lossis ntau dua qhov tso zis torque los ntawm kev sib npaug, yooj yim tuav ntau lub zog siab bolts thiab ceev. Cov cuab yeej no tsis yog tsuas yog yooj yim rau kev khiav lag luam tab sis kuj muaj ntau yam kev siv hauv kev lag luam vim nws qhov torque amplification feature. Txawm nyob rau hauv petrochemicals, lub zog tsim, aerospace, los yog railway thiab choj kev tsim kho, lub torque wrench multiplier tuaj yeem ua lub luag haujlwm muaj zog, txhim kho kev ua haujlwm zoo thiab kev nyab xeeb ntawm kev ua haujlwm. Nws cov qauv tsim rugged thiab ruaj khov ua rau nws ua haujlwm ruaj khov rau lub sijhawm ntev hauv qhov chaw ua haujlwm hnyav, ua rau nws yog tus pabcuam tseem ceeb rau cov kws tshaj lij thiab cov kws tshaj lij hauv kev ua haujlwm siab, siab-torque.
Khoom Specifications
|
Qauv |
Max torque |
Iav piv |
Input tsav tsheb |
Output tsav tsheb |
Loj (A * B * C * D) |
Adaptable bolts dia |
Txiv ntseej hla cov flats |
Qhov hnyav |
|
SDX-100CT-01 |
1500 |
1:4 |
1/2" |
1" |
82*98.5*97*122.4 |
M20-30 |
S30-46 |
2.1 |
|
SDX-100CT-02 |
2000 |
1:13 |
1/2" |
1" |
82*120*105*147 |
M22-35 |
S32-55 |
3.15 |
|
SDX-100CT-03 |
3500 |
1:16 |
1/2" |
1" |
98*131*120*163 |
M30-45 |
S46-70 |
4.9 |
|
SDX-100CT-04 |
5500 |
1:21 |
1/2" |
1-1/2" |
115*163.5*137*199 |
M38-52 |
S55-80 |
8.1 |
|
SDX-100CT-05 |
7500 |
1:23 |
1/2" |
1-1/2" |
127*173*146*215 |
M42-60 |
S65-90 |
10.6 |
|
SDX-100CT-06 |
10000 |
1:28 |
1/2" |
1-1/2" |
141*170*164*238 |
M52-72 |
S80-105 |
14 |
specifications ntawm tiaj torque multiplier
|
Qauv |
Max torque |
Iav piv |
Input tsav tsheb |
Output tsav tsheb |
Loj (A * B * C) |
Adaptable bolts dia |
Txiv ntseej hla cov flats |
Qhov hnyav |
|
SDX-200CT-01 |
1500 |
1:4 |
1/2" |
1" |
82*97*(76.7-127.3) |
M20-30 |
S30-46 |
2.4 |
|
SDX-200CT-02 |
2000 |
1:13 |
1/2" |
1" |
82*120*(92.7-129.3) |
M22-35 |
S32-55 |
3.5 |
|
SDX-200CT-03 |
3500 |
1:16 |
1/2" |
1" |
98*128*(102.7-145.3) |
M30-45 |
S46-70 |
5 |
|
SDX-200CT-04 |
5500 |
1:21 |
1/2" |
1-1/2" |
115*157*(134.05-165.95) |
M38-52 |
S55-80 |
8.7 |
|
SDX-200CT-05 |
7500 |
1:23 |
1/2" |
1-1/2" |
127*168*(139.05-190.95) |
M42-60 |
S65-90 |
11.7 |
|
SDX-200CT-06 |
10000 |
1:28 |
1/2" |
1-1/2" |
141*186*(144.05-215.95) |
M52-72 |
S80-105 |
15.2 |
|
SDX-200CT-07 |
15000 |
1:50 |
1/2" |
2-1/2" |
156*246*(155.25-244.75) |
M60-85 |
S80-120 |
24.1 |
|
SDX-200CT-08 |
20000 |
1:76 |
1/2" |
2-1/2" |
170*264*(163.75-276.25) |
M72-100 |
S105-145 |
27.8 |
Khoom nta
Flat Type Tes Torque Multiplier nta cov ntsiab lus tseem ceeb hauv qab no:
1. Muaj peev xwm ua kom lub zog loj loj: Siv lub tshuab hluav taws xob muaj txiaj ntsig zoo, lub tshuab hluav taws xob torque tuaj yeem ua kom lub zog nkag tau zoo, tsis siv zog tuav cov ntsia hlau loj thiab cov txiv ntoo lossis cov haujlwm uas yuav tsum tau muaj lub zog loj.
2. Kev Ua Haujlwm Yooj Yim: Tsim los rau kev yooj yim, torque wrench multiplier tuaj yeem ua tau yooj yim ua ke nrog cov pa torque wrenches, ua kom cov zis siab torque yam tsis tas yuav tsum muaj kev ua haujlwm tshwj xeeb.
3. Kev siv dav dav: Qhov kev sib tw no tau sib xws nrog ntau yam kev qhia tshwj xeeb thiab hom bolts thiab txiv ntseej, ua kom muaj kev lag luam ntau yam kev xav tau thiab muab cov kev daws teeb meem yooj yim rau cov ntawv thov sib txawv.
4. High Precision: Xyuas kom meej lub zog torque tso zis, lub torque wrench multiplier guarantees qhov tseeb thiab txhim khu kev qha fastening ntawm bolts thiab txiv ntseej, ua tau raws li cov kev xav tau ntawm engineering.
5. Kev ruaj ntseg ruaj khov: Tsim los siv cov ntaub ntawv zoo thiab kev ua haujlwm siab tshaj plaws, lub torque wrench multiplier nthuav tawm cov kav ntev, muaj peev xwm ua haujlwm ruaj khov rau lub sijhawm ntev txawm tias nyob rau hauv qhov chaw ua haujlwm hnyav.
6. Portability thiab Maintenance Convenience: Nrog ib tug compact thiab lub teeb yuag tsim, cov khoom yog ib qho yooj yim mus nqa thiab thauj. Tsis tas li ntawd, nws yog qhov yooj yim los ntxuav thiab tswj, txo cov nqi siv tag nrho.
Cov yam ntxwv no ua rau lub torque wrench multiplier yog qhov tseem ceeb thiab cov cuab yeej siv tau zoo hauv cov chaw lag luam, dav siv hauv cov ntawv thov uas xav tau siab precision thiab torque.
Daim ntawv thov Scenario
Lub Flat Type Tes Torque Multiplier pom daim ntawv thov dav dav thoob plaws ntau yam kev lag luam thiab thaj chaw. Nov yog qee qhov kev thov thawj zaug scenarios:
1. Heavy Machinery Manufacturing and Installation: Siv nyob rau hauv lub installation thiab debugging txheej txheem ntawm hnyav machinery xws li CNC tshuab cov cuab yeej thiab txhaj tshuaj molding tshuab, lub torque ciaj ntswj multiplier muab txaus torque rau fasten loj bolts, kom cov khoom stability thiab kev ruaj ntseg.
2. Petroleum thiab Chemical Industry thiab Pipeline Installation: Hauv kev lag luam xws li roj av thiab tshuaj engineering, kev tswj lub zog kom meej yog qhov tseem ceeb rau cov haujlwm xws li flange kev sib txuas ntawm cov kav dej, kev teeb tsa lub valve, thiab kev ua haujlwm twj tso kua mis. Lub torque wrench multiplier muab qhov tseeb torque tso zis, ua kom muaj kev sib khi ua haujlwm zoo thiab kev ua haujlwm ruaj ntseg.
3. Cov Cuab Yeej Siv Hluav Taws Xob Kev Kho: Kev ua haujlwm nyob rau sab nraum zoov ib puag ncig muaj cua daj cua dub thiab kev vibrations, cov tshuab hluav taws xob cua tshuab yuav tsum tau saib xyuas tsis tu ncua. Lub torque wrench multiplier pab tswj tus txheej txheem bolt fastening, tiv thaiv kev nyab xeeb tshwm sim los ntawm bolt loosening.
4. Kev tsim kho choj thiab kev tsim vaj tsev: Hauv kev tsim cov choj thiab cov qauv tsim, lub torque wrench multiplier ua kom qhov tseeb fastening ntawm high-strength bolts, lav tag nrho cov qauv kev ruaj ntseg thiab kev nyab xeeb.
5. Kev Thauj Tsheb Thauj Khoom thiab Kev Kho Tsheb: Kev tswj lub zog kom raug yog qhov tseem ceeb hauv kev teeb tsa thiab kev saib xyuas kev tsheb ciav hlau. Lub torque wrench multiplier pab cov neeg ua haujlwm sai thiab raug nrawm nrawm nrawm.
6. Aerospace Kev Lag Luam: Nrog rau cov kev xav tau nruj rau cov ntsia liaj qhov rooj thiab cov txiv ntoo fastening, lub torque wrench multiplier muab kev tswj kom muaj kev sib tw siab, ua kom muaj kev nyab xeeb thiab kev ua haujlwm ntawm lub dav hlau.
7. Shipbuilding thiab Kho: Thaum lub sij hawm tsim thiab kho cov txheej txheem ntawm ships, ib tug loj tus naj npawb ntawm bolts thiab ceev yuav tsum tau fastened. Lub torque wrench multiplier txhim kho kev ua haujlwm ntawm kev ua haujlwm kom ntseeg tau qhov tseeb thiab kev ntseeg tau ntawm kev ceev ceev.
Nyob rau hauv cov ntsiab lus, lub torque wrench multiplier yog dav siv nyob rau hauv scenarios xav tau meej tswj ntawm bolt thiab txiv ntseej fastening torque.
Kev Pabcuam Cov Neeg Siv Khoom
Peb muab kev pabcuam ua ntej muag, muag, thiab kev pabcuam tomqab muag kom ntseeg tau tias cov neeg siv khoom tau txais kev pabcuam raws sijhawm thiab kev tshaj lij thoob plaws hauv kev siv khoom. Peb pab neeg muab kev pabcuam cov neeg siv khoom muaj los teb cov lus nug, muab kev txhawb nqa, thiab muab kev sib tham txog cov khoom txhua lub sijhawm. Tsis tas li ntawd, peb muab cov kev pab cuam tom qab muag xws li kev saib xyuas cov khoom thiab kev saib xyuas kom ntseeg tau tias cov khoom ua tau zoo.
FAQ
Q: Yuav ua li cas khiav lub torque wrench multiplier?
A: Thaum ua haujlwm ntawm torque wrench multiplier, xyuas kom raug installation thiab hloov tus nqi torque. Siv lub zog tsim nyog kom ua tiav cov zis ntau torque.
Q: Nyob rau hauv dab tsi scenarios yog torque wrench multiplier siv tau?
A: Lub torque wrench multiplier yog tsim rau cov xwm txheej uas yuav tsum tau muaj lub zog loj, xws li kev kho tsheb, kev tsim khoom, thiab kev lag luam cua tshuab.
Q: Yuav ua li cas tswj lub torque wrench multiplier?
A: Tsis tu ncua ntxuav lub ciaj ntswj kom ntseeg tau tias nws tsis muaj roj thiab impurities. Thaum khaws cia, tsis txhob tshav ntuj ncaj qha thiab qhov chaw ntub dej kom ntev cov khoom lag luam.
