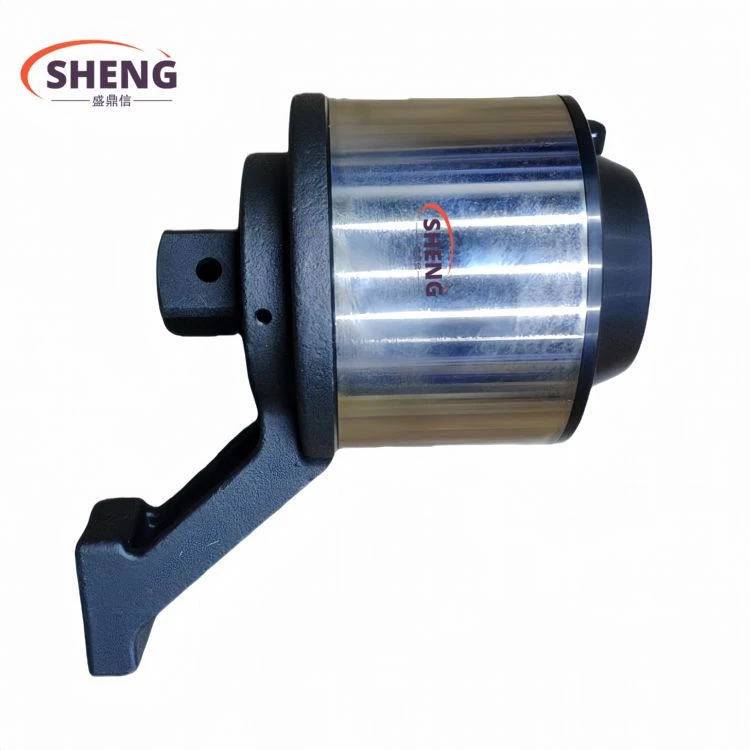

Khoom taw qhia
Nws yog ib qho nyuaj rau nruj thiab tshem tawm txoj kab uas hla loj bolts thiab ceev ntawm lub hwj chim txij nkawm ntawm fais fab nroj tsuag thiab ntau lawm txij nkawm thiab installation qhov chaw ntawm ntau yam kev lag luam industries, tshwj xeeb tshaj yog nyob rau hauv ib puag ncig uas nws nyuaj rau cov tswv tsim (piv txwv li, qhov chaw nyob ib ncig ntawm lub cov khoom siv me me, thiab nws tsis tuaj yeem siv cov pas nrig thiab ntau yam tshwj xeeb wrenches, thiab lwm yam). Qhov kev tsis sib haum xeeb no tseem ceeb dua. Lub torque multiplier tsim los ntawm peb lub tuam txhab ua ke nrog cov ntawv thov tiag tiag tuaj yeem pab koj daws qhov teeb meem no. Tam sim no, qhov siab tshaj plaws tso zis torque ntawm cov koob no yog 20000NM, thiab qhov siab tshaj plaws yog 76 zaug, uas ua rau cov neeg ua haujlwm tau txais qhov siab tshaj plaws torque nrog rau qhov tsawg kawg nkaus quab yuam, thiab tseem ua kom cov zis torque raug nyob rau hauv ± 5%.
Cov yam ntxwv ua haujlwm
1. Nws txais kev ua haujlwm siab ntawm lub ntiaj teb kev hloov pauv ceev raws li lub ntsiab tsav, uas yog qhov me me thiab lub teeb hauv qhov hnyav. Vim qhov sib piv loj ceev, lub zog me me tuaj yeem tsim kom muaj qhov tso zis ntau zog, thiab lub kaum sab xis ntawm cov ceg tuaj yeem hloov pauv 360 degree arbitrarily.
2. Tus neeg teb xov tooj tsuas yog yuav tsum siv lub zog me me kom tau txais 4-28 zaus ntawm qhov tso zis torque.
3. Qhov sib txuam torque wrench presets lub torque raws li qhov sib kis sib kis, mus txog qhov sib txuas ua ntej nruj torque, thiab tuaj yeem xa tawm "nias" lub tswb ceeb toom, nrog rau kev ua kom pom tseeb ntawm tes, kom yooj yim ua kom tiav qhov nruj thiab disassembly. ntawm bolts thiab ceev.

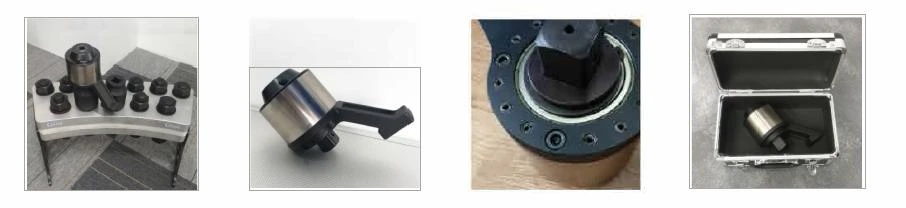

Product details txhaj tshuaj tiag
Khoom Specifications
|
Qauv |
Max torque |
Iav piv |
Input tsav tsheb |
Output tsav tsheb |
Loj (A * B * C * D) |
Adaptable bolts dia |
Txiv ntseej hla cov flats |
Qhov hnyav |
|
SDX-100CT-01 |
1500 |
1:4 |
1/2" |
1" |
82*98.5*97*122.4 |
M20-30 |
S30-46 |
2.1 |
|
SDX-100CT-02 |
2000 |
1:13 |
1/2" |
1" |
82*120*105*147 |
M22-35 |
S32-55 |
3.15 |
|
SDX-100CT-03 |
3500 |
1:16 |
1/2" |
1" |
98*131*120*163 |
M30-45 |
S46-70 |
4.9 |
|
SDX-100CT-04 |
5500 |
1:21 |
1/2" |
1-1/2" |
115*163.5*137*199 |
M38-52 |
S55-80 |
8.1 |
|
SDX-100CT-05 |
7500 |
1:23 |
1/2" |
1-1/2" |
127*173*146*215 |
M42-60 |
S65-90 |
10.6 |
|
SDX-100CT-06 |
10000 |
1:28 |
1/2" |
1-1/2" |
141*170*164*238 |
M52-72 |
S80-105 |
14 |
