Handheld rebar dabtsi yog khoov tshuab yog ib qho khoom siv siv ntau hauv kev tsim kho engineering. Cov hauv qab no yog cov ncauj lus kom ntxaws txog nws:
Product Overview

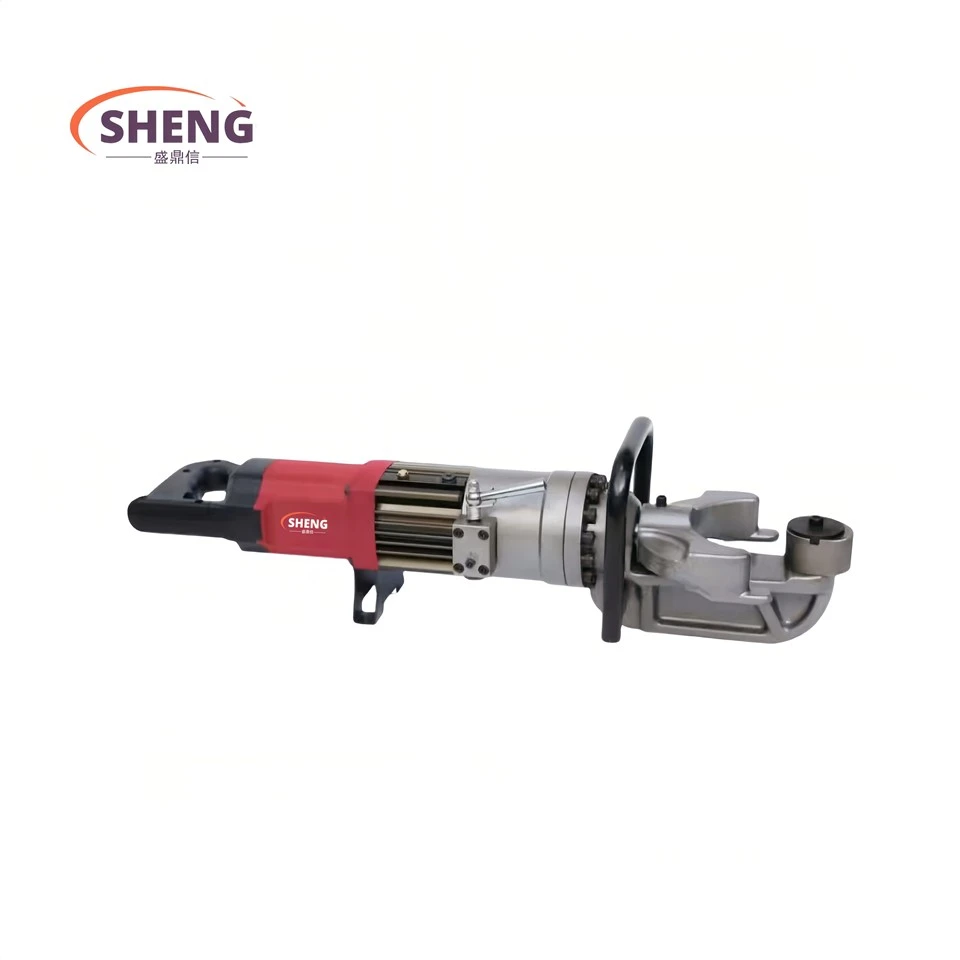

Handheld rebar dabtsi yog khoov tshuab yog lub tshuab me me rebar dabtsi yog khoov. Nws txais cov cuab yeej siv hydraulic siab heev thiab muaj cov yam ntxwv ntawm lub zog dabtsi yog khoov, ua haujlwm yooj yim, me me, lub teeb yuag, yooj yim nqa thiab txav mus los. Lub tshuab tuaj yeem tsis tsuas yog khoov tab sis kuj ncaj rau lub rebar yam tsis hloov cov pwm. Nws yog tsim rau khoov lub rebar nyob rau hauv ntsug kev taw qhia tom qab pouring los yog khi, xws li khoov lub ntsiab tuav ntawm txhua kab thiab shear phab ntsa thaum lub tsev yog capped, khoov lub ntsiab tuav ntawm lub rebar tawb taub hau, thiab straightening lub ntsiab tuav tom qab lub pawg hauv paus tawg.
Khoom nta
1. Yooj yim zuag qhia tag nrho cov qauv: Tus tsim ntawm handheld rebar dabtsi yog khoov tshuab yog yooj yim thiab meej, yooj yim rau kev khiav lag luam thiab siv, nrog zoo stability thiab siab ntseeg. Nws tuaj yeem ua kom qhov zoo ntawm rebar dabtsi yog khoov thiab txhim kho kev ua haujlwm.
2. Muaj zog siv tau: Lub tshuab tsim nyog rau kev ua haujlwm ntawm qhov chaw xws li qhov chaw uas nyuaj mus cuag los ntawm cov tshuab dabtsi yog khoov zoo tib yam tom qab lub rebar khi, thiab tuaj yeem ua tau raws li cov kev xav tau ntawm rebar dabtsi yog khoov nyob rau hauv ib puag ncig thiab kev tsim kho sib txawv.
3. Muaj zog dabtsi yog khoov quab yuam: Tsav los ntawm lub zog siab, lub tes tuav steel bar dabtsi yog khoov tshuab tuaj yeem khoov puag ncig steel thiab threaded steel tuav nrog loj diameters xws li 36mm.
4. Versatility: Tsis tas yuav hloov lub taub hau ua haujlwm los ua steel bar dabtsi yog khoov thiab ua haujlwm ncaj. Ib lub tshuab tuaj yeem siv rau ntau lub hom phiaj, uas txhim kho qhov kev siv ntawm cov khoom siv.
5. Yooj yim rau kev khiav lag luam: Kev ua haujlwm ntawm tes tuav steel bar dabtsi yog khoov tshuab yog qhov yooj yim thiab nyab xeeb, uas tuaj yeem txo qis kev ua haujlwm. Cov khoom yog yooj yim txav mus los thiab tshwj xeeb tshaj yog haum rau kev ua haujlwm hauv xov tooj ntawm tes hauv kev cob qhia lossis ntawm qhov chaw.
Technical parameters
|
Qauv |
Qhov hluav taws xob |
Hwj chim |
Khoov ceev |
Khoov ntau yam |
Tshuab hnyav |
Packing loj |
|
SDX-HRB-16 |
220V |
1100W |
2-2.5S |
10-16MM |
13.8 KG |
705 * 190 * 250 hli |
|
SDX-HRB-22 |
220V |
1150W |
2.5-3S |
10-22MM |
15.5 KG |
705 * 190 * 250 hli |
|
SDX-HRB-25 |
220V |
1200W |
3-4S |
16-25MM |
19 KG |
720 * 220 * 250 hli |
|
SDX-HRB-28 |
220V |
1250W |
3-4S |
16-28MM |
21 KG |
775 * 230 * 285 hli |
|
SDX-HRB-32 |
220V |
1600W |
4-5S |
16-32MM |
25 KG |
715 * 215 * 370 hli |
|
SDX-HRB-36 |
220V |
1800W |
4-5S |
16-36MM |
26 KG |
715 * 215 * 370 hli |
Cov chaw thov
Handheld steel bar dabtsi yog khoov tshuab yog dav siv nyob rau hauv high-sawv vaj tse, txoj kev loj, railway foundation pawg foundation steel tawb thiab ntau lub tsev skeletons. Cov xwm txheej tshwj xeeb ntawm daim ntawv thov muaj xws li:
1. Choj pawg hauv paus teb: Lub taub hau tawb khoov 90 degrees lossis 180 degrees ntawm qhov kev sib txuas ntawm lub tawb steel thiab cov pedestal los pab txhawb kev sib txuas nrog cov pedestal.
2. Kev tsim kho qhov chaw: Kev tsim vaj tsev pawg taub hau steel tuav, subways, tunnels, steel tawb, thiab lwm yam.
3. Foundation pit anchor bending: khoov kev tsim kho ntawm lub hauv paus pit anchors thiab av ntsia thawv phab ntsa.
4. Kho tom qab lub hauv paus tawg: khoov thiab ncaj cov cam khwb cia los yog khi steel tuav nyob rau hauv txoj kab ntsug.
Kev ceev faj rau kev siv
1. Tshawb xyuas cov khoom siv: Ua ntej siv, xyuas seb cov khoom puas zoo thiab cov cuab yeej kev nyab xeeb tsis zoo los xyuas kom meej tias cov cuab yeej tsis muaj dej, xoob, puas, thiab lwm yam.
2. Kev tiv thaiv hnav: Tus neeg teb xov tooj yuav tsum sawv ntsug hauv qhov chaw ruaj ntseg ntawm cov khoom siv thiab hnav cov khoom tiv thaiv kom raug, xws li kaus mom hlau, hnab looj tes, tsom iav, thiab lwm yam.
3. Kev ua haujlwm raug: Ua haujlwm cov cuab yeej kom raug raws li phau ntawv qhia ntawm cov khoom siv kom tsis txhob muaj cov khoom puas lossis raug mob los ntawm kev ua haujlwm tsis raug cai.
4. Ua tib zoo saib xyuas kev nyab xeeb: Thaum lub sijhawm ua haujlwm, xyuam xim rau cov txheej txheem dabtsi yog khoov ntawm steel bar kom paub meej tias lub kaum sab xis thiab khoov nkhaus raws li qhov yuav tsum tau ua. Tib lub sijhawm, ua tib zoo saib xyuas kev nyab xeeb ntawm cov khoom siv kom tsis txhob muaj xwm txheej.
5. Kev tu vaj tse: Tom qab siv, lub tshuab fais fab yuav tsum raug txiav tawm thiab cov khoom siv yuav tsum tau muab ntxuav kom lub tshuab kom huv si thiab huv si. Lubricate, ntxuav thiab kho cov cuab yeej tsis tu ncua kom ntseeg tau tias cov cuab yeej ua haujlwm ib txwm muaj.
Nyob rau hauv cov ntsiab lus, lub handheld steel bar dabtsi yog khoov tshuab yog ib tug npaum, ruaj khov, hnav thiab yooj yim-rau- nqa steel bar ua khoom. Nws cov ntawv thov hloov pauv tau ntau yam thiab kev ua haujlwm ua tau zoo ua rau nws ua tus pabcuam muaj zog hauv kev tsim kho.
