Dial Torque Wrench yog ib qho cuab yeej siv los ntsuas thiab qhia txog qhov kev sib hloov thiab torsional quab yuam siv thaum tuav lub txiv ntseej lossis ntsia liaj qhov rooj.
Product Overview

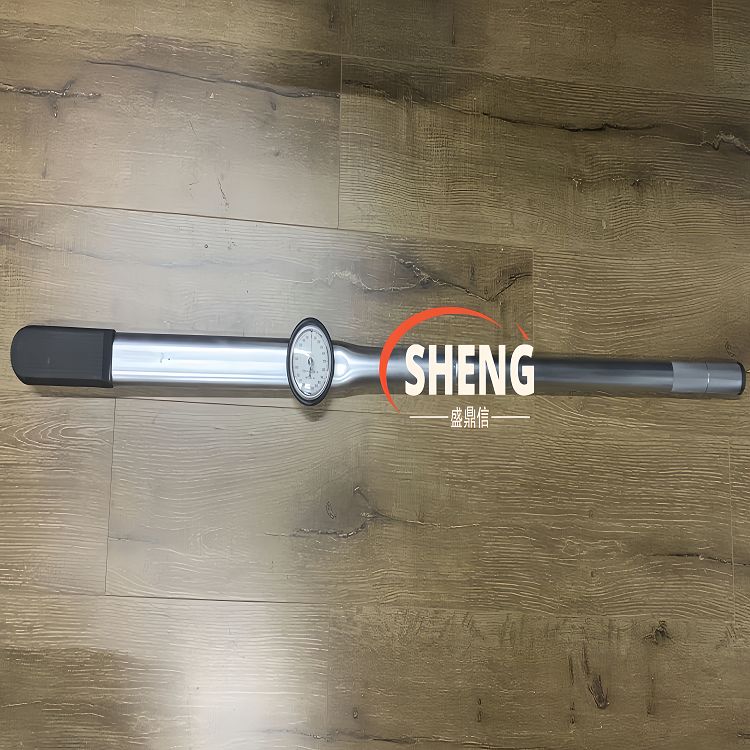

Dial Torque Wrench yog ib qho tshwj xeeb torque wrench uas pom qhov muag pom tus nqi torque ntawm cov ntsuas ntsuas, bolts thiab lwm yam fasteners los ntawm tus taw tes ntawm lub dial, thiab tuaj yeem rov qab tau tus nqi torque.
|
Qauv |
Torque ntau |
Fine Scale |
Ntev |
Qhov hnyav |
Tus tsav tsheb |
|
SDX-125HP-001 |
1-12 |
0.2 |
305 |
0.45 |
1/4" |
|
SDX-125HP-002 |
3-25 |
0.5 |
320 |
0.5 |
3/8" |
|
SDX-125HP-003 |
5-50 |
0.5 |
355 |
0.55 |
3/8" |
|
SDX-125HP-004 |
10-100 |
1 |
395 |
0.6 |
1/2" |
|
SDX-125HP-005 |
20-200 |
2 |
497 |
0.8 |
1/2" |
|
SDX-125HP-006 |
30-280 |
3 |
690 |
1.35 |
3/4" |
|
SDX-125HP-007 |
40-420 |
5 |
890 |
2.45 |
3/4" |
|
SDX-125HP-008 |
50-560 |
5 |
1100 |
3.85 |
3/4" |
|
SDX-125HP-009 |
70-700 |
10 |
1330 |
4.5 |
3/4" |
|
SDX-125HP-010 |
100-850 |
10 |
1330 |
4.85 |
1" |
|
SDX-125HP-011 |
100-1000 |
10 |
1445 |
5.1 |
1" |
|
SDX-125HP-012 |
200-1500 |
20 |
1445 |
5.2 |
1" |
|
SDX-125HP-013 |
300-2100 |
20 |
1472 |
5.2 |
1" |
Lub luag haujlwm tseem ceeb ntawm Dial Torque Wrench yog los xyuas kom meej tias tus nqi torque raug siv thaum lub sij hawm nruj. Thaum lub torque nce mus txog tus nqi preset, tus ciaj ntswj yuav ua suab nrov lossis tsim lwm hom kev tawm tswv yim kom tus neeg teb xov tooj tsis txhob siv lub zog. Qhov no yuav pab tiv thaiv kom nruj los yog dhau-loosing thiab ua kom muaj kev nyab xeeb thiab kev ntseeg siab ntawm fastener.
Thov nco ntsoov cov ntsiab lus ua ntej siv lub tshuab
1. Thov tsis txhob disassemble lossis khob ntawm lub siab kom tsis txhob cuam tshuam qhov raug ntawm cov khoom.
2. Lub nplhaib sab nraud ntawm lub xov tooj yog ib feem yas, tsis txhob sib cuag nrog kub kub kom tsis txhob muaj kev puas tsuaj.
3. Thov tsis txhob siv nws dhau qhov torque ntau.
4. Cov khoom no tuaj yeem siv tau rau hauv ob qho kev qhia, tab sis nws tsis raug tso cai siv los xoob cov fasteners los tiv thaiv overload los ntawm kev cuam tshuam qhov tseeb ntawm qhov taw qhia.
