Khoom Description

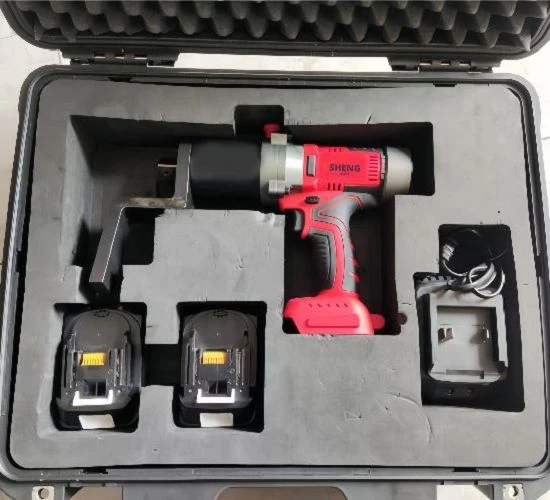

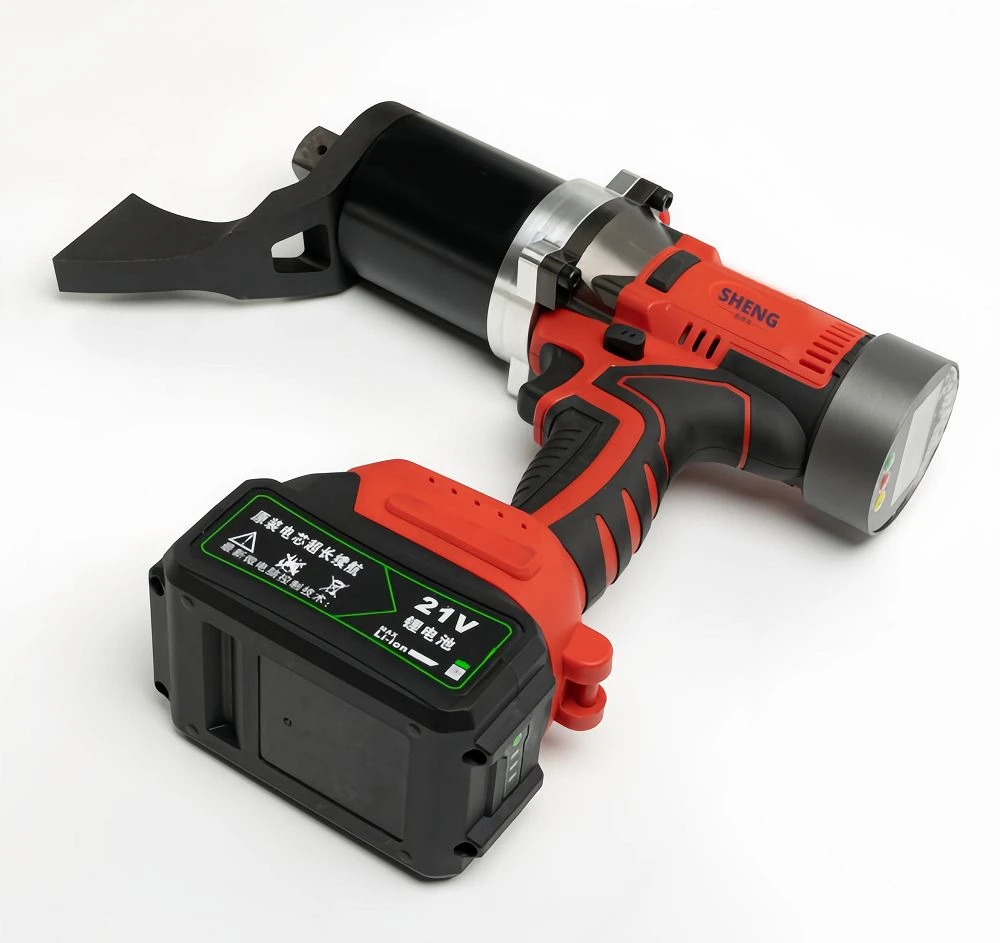

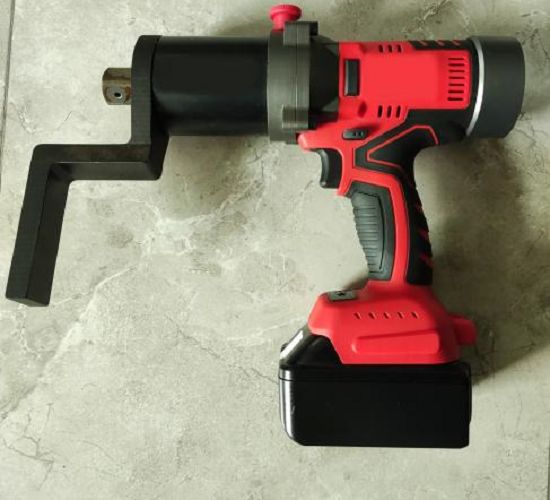

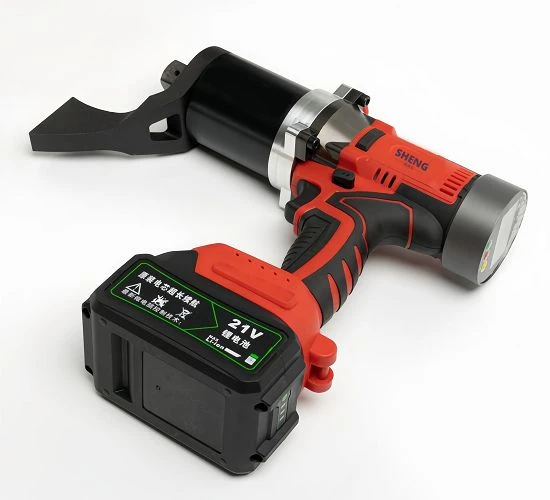

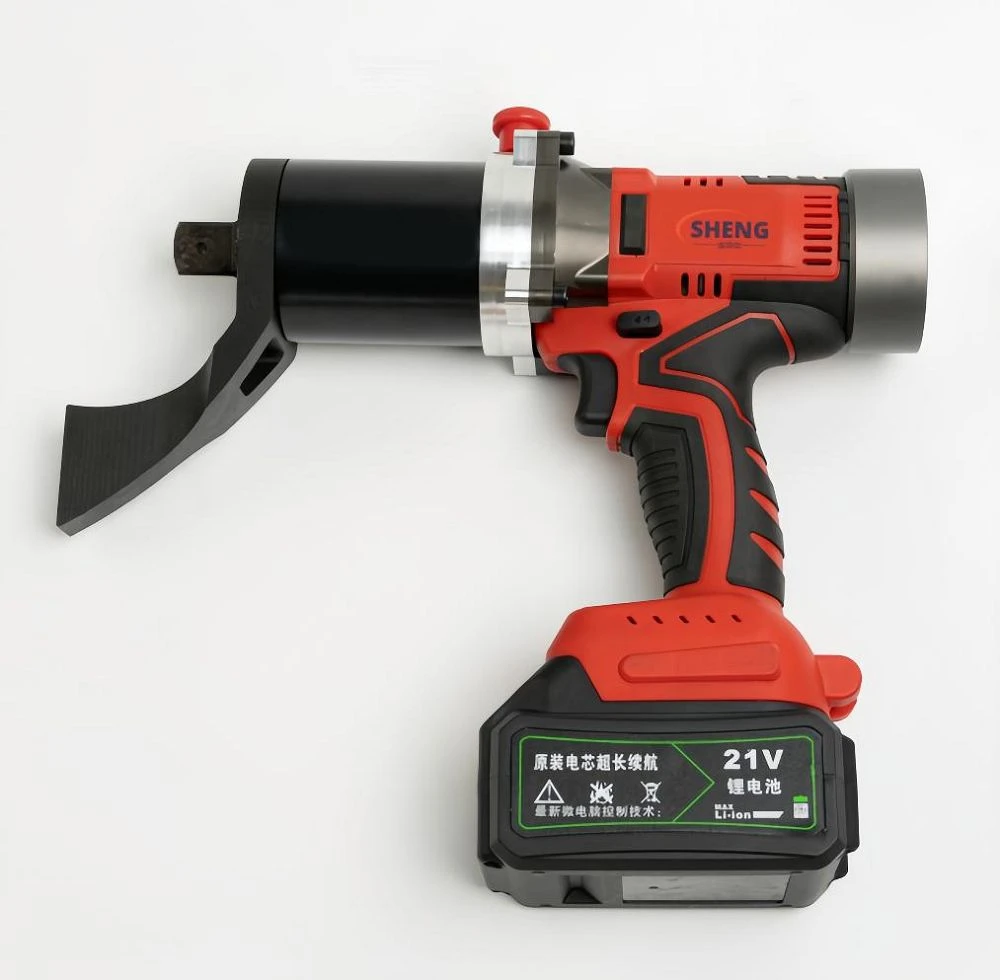

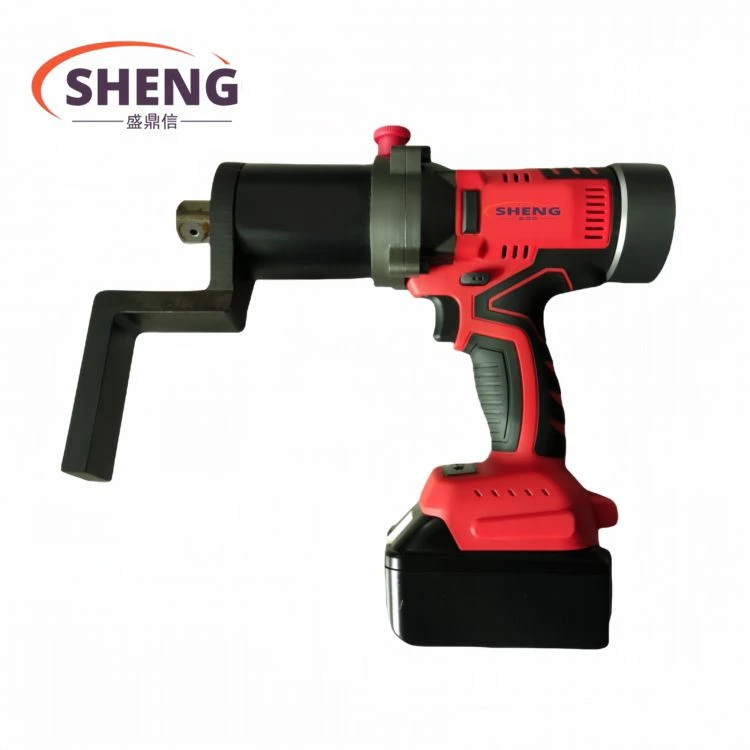

Lub cordless hloov torque ntau yam ciaj ntswj yog ib tug high-precision thiab high-efficiency zog lub cuab tam tsuas yog siv rau fastening bolts thiab ceev. Nruab nrog lub vijtsam digital zaub, tus ciaj ntswj no tuaj yeem pom qhov pom ntawm tus nqi torque tam sim no, kom ntseeg tau tias muaj kev ua haujlwm ntau dua thiab tswj tau. Tsis tas li ntawd, nws nta torque teeb tsa muaj nuj nqi, tso cai rau cov neeg siv los teeb tsa lub zog tshwj xeeb raws li kev ua haujlwm. Thaum tus nqi teeb tsa tau mus txog, tus ciaj ntswj cia li nres ua haujlwm, kom ntseeg tau tias qhov tseeb thiab qhov sib xws ntawm kev ceev ceev.
|
Qauv |
Ro ceev |
Torque ntau |
Adaptble Bolts Dia |
Qhov hnyav |
|
SDX-500BA-01 |
500r / min |
2-10N.m |
1/2" |
2 KG |
|
SDX-500BA-02 |
375 r / min |
4-30N.m |
1/2" |
2 KG |
|
SDX-500BA-03 |
350r / min |
10-50N.m |
1/2" |
2 KG |
|
SDX-500BA-04 |
100r / min |
20-100N.m |
1/2" |
2 KG |
|
SDX-500BA-05 |
100r / min |
40-200N.m |
1/2" |
2.5 KG |
|
SDX-500BA-06 |
15 r / min |
100-500N.m |
1/2" |
3 KG |
|
SDX-500BA-07 |
14 r / min |
150-800N.m |
3/4" |
4 KG |
|
SDX-500BA-08 |
8r / min |
200-1000N.m |
3/4" |
4.5 KG |
|
SDX-500BA-09 |
5.6r / min |
200-2000N.m |
1" |
5.8KG ib |
|
SDX-500BA-10 |
3 r / min |
300-3000N.m |
1" |
7.4KG ib |
|
SDX-500BA-11 |
2.4 r / min |
700-4000N.m |
1" |
10.5 KG |
|
SDX-500BA-12 |
1.4 r / min |
1200-6000N.m |
1",1-1/2" |
13 KG |
KHOOM NTA

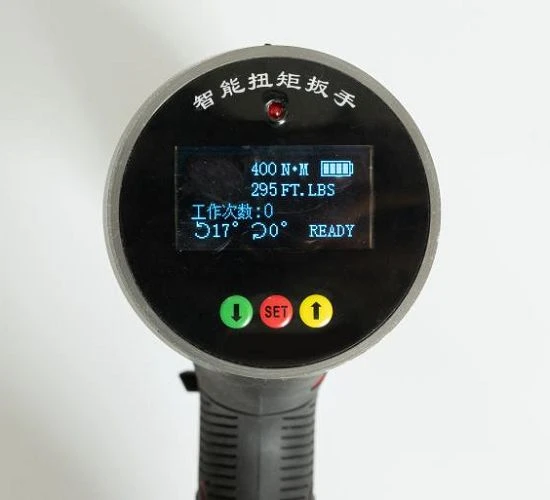

1. Cov khoom siv digital: lub sijhawm tiag tiag ntawm lub zog ntawm lub zog, nrawm, thiab tus lej hloov
2. Arbitrary torque teeb: Kho lub zog rau 1Nm kom nce lossis txo
3. Precision torque tswj: built-in sensor, torque raug ± 5%, repeatability raug ± 2%
4. Tsis siv neeg kaw: cia li kaw thaum ncav cuag lub hom phiaj tus nqi5. Calibration: Lub calibration muaj nuj nqi uas yoog mus rau ntau yam kev ua hauj lwm rau calibration nqi6. Fault alarm: lub cev muaj zog overheating tswb, system txhaum lub tswb, ua haujlwm yuam kev tswb, nrog torque overload txwv muaj nuj nqi
7. Cov ntaub ntawv xa tawm: Txhawb WlFl thiab USB txoj hauv kev xa tawm cov ntaub ntawv (ua haujlwm toraue. anale. ceev)
8. Kev sib txuas lus: Txuas mus rau lub khoos phis tawj sab sauv thiab cov neeg hlau los ntawm Is Taws Nem ntawm Yam, thiab txuas nrog MES kev tswj hwm.
9.Automatic tswj ntawm tej thaj chaw deb zawm ncej
10. Variable ceev: Dual ceev clutch kis tau tus mob gearbox, nrog ib tug ceev 3-5 zaus ntawm tus qauv series .
cordless hloov torque ntau yam ciaj ntswj pom kev siv dav hauv kev tsim khoom siv hluav taws xob, cua turbine los ua ke, nkoj tsim, thiab lwm yam. Zuag qhia tag nrho, nws qhov kev ua haujlwm siab thiab cov duab digital ua rau nws tsim nyog rau ntau lub sijhawm uas xav tau kev tswj hwm lub zog, txhim kho kev ua haujlwm zoo thiab kev nyab xeeb.
